On August 29, Xiamen Municipal Bureau of Industry and Information Technology and Xiamen Internet of Things (IoT) Industry Association jointly released the list of "2025 Xiamen Excellent IoT Products and Application Solutions". After three rounds of rigorous selection including preliminary document review, expert defense, and on-site testing, the Smart Pipe Network Drainage and Waterlogging Prevention System independently developed by Xiamen Haichuan Runze IoT Technology Co., Ltd. stood out from numerous declared projects and was successfully selected into the "Excellent Application Solutions" list!
Smart Pipe Network Drainage and Waterlogging Prevention System
The smart pipe network drainage and waterlogging prevention system mainly targets the integrated drainage management system covering "sources, networks, stations, plants, and rivers". With the goals of urban water security and river basin water quality compliance, it leverages GIS technology, IoT technology, Internet technology, big data, and AI model algorithms to gradually realize real-time monitoring of hydrology, water quality, operation status, and overflow of all units (including sources, networks, stations, plants, and rivers) within the river basin. Various system units in the urban drainage system, such as sewage treatment plants, waterlogging drainage pumping stations, sluice stations, drainage pipe networks, urban internal and external rivers and lakes, and reservoirs, interact and restrict each other. The system gradually enables the information-based, automated, and intelligent operation of all water-related elements.
System Functions
The system mainly consists of the following subsystems:
Pipe Network Monitoring Subsystem: Focuses on pipe network data collection, data analysis, early warning and forecasting, and management command.
Waterlogging Monitoring Subsystem: Focuses on real-time data collection, early warning and forecasting, and auxiliary decision-making for waterlogging and ponding monitoring.
Pump and Sluice Monitoring Subsystem: Focuses on monitoring the status of pumping stations and realizing remote and on-site dispatching.
Intelligent Analysis Subsystem: Realizes intelligent analysis of pipe networks, waterlogging, pumps, and sluices.

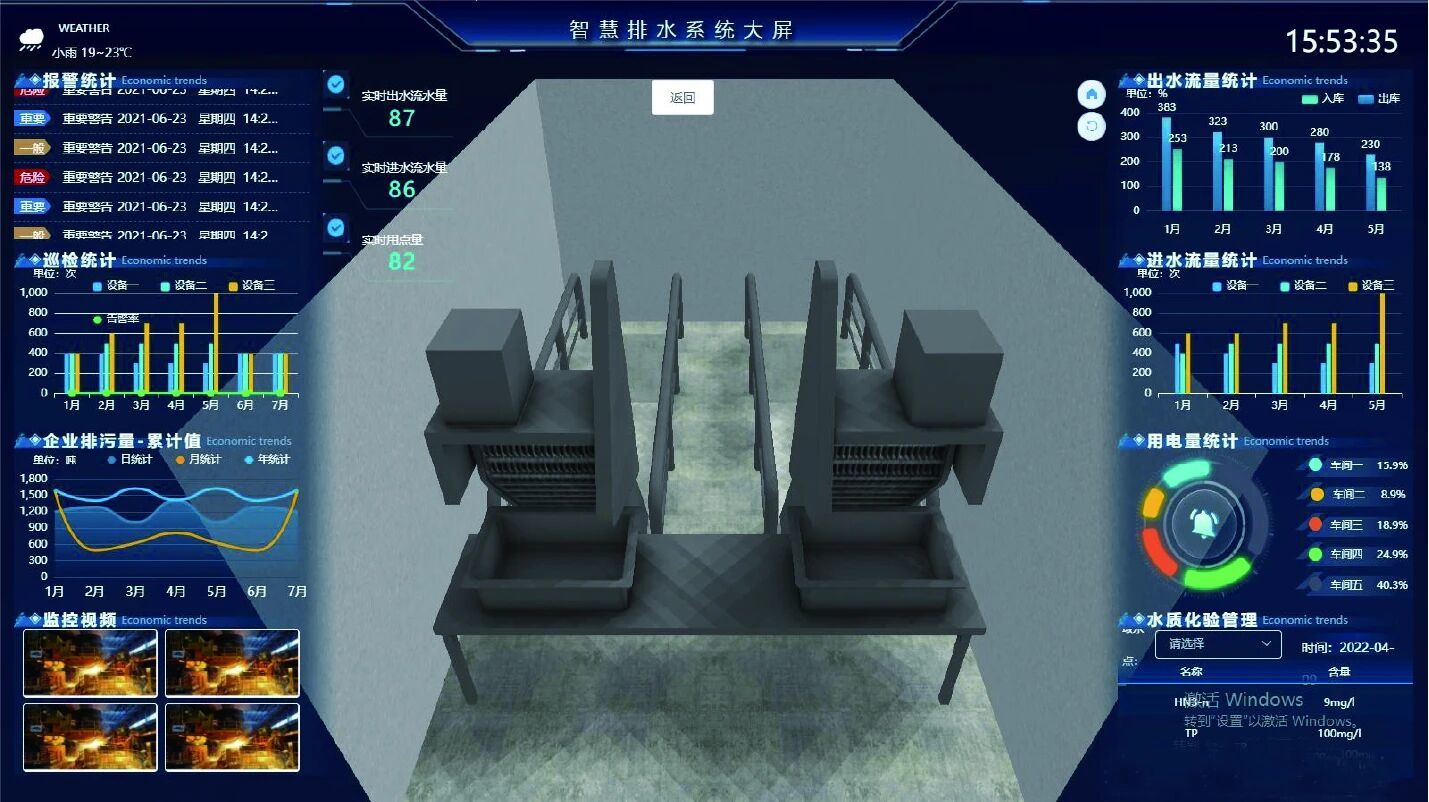

Integrated Map (One Map)
The integrated map for smart drainage monitoring mainly uses the GIS platform to display the pipe network and its layout in 3D form, and presents corresponding monitoring data and real-time alarm functions by area, section, and point. At the same time, it provides statistical display of pipe network information overview, release of early warning information, and real-time video monitoring display. It covers the pipe network monitoring system, waterlogging monitoring system, pumping station monitoring system, and intelligent analysis system.
1. Drainage Pipe Network Monitoring System
Based on the concept of IoT, the drainage pipe network monitoring system adopts information-based methods and combines GIS display to fully grasp the operation status of the drainage system (such as pipe network water level, flow rate, water quality, harmful gas concentration, and pumping station operation status), ensuring the safe and efficient operation of the drainage system. It improves the emergency command and rapid response capabilities by building a safety early warning platform, and provides a scientific and advanced urban-level hydraulic analysis model to comprehensively evaluate the capacity of the urban drainage pipe network.

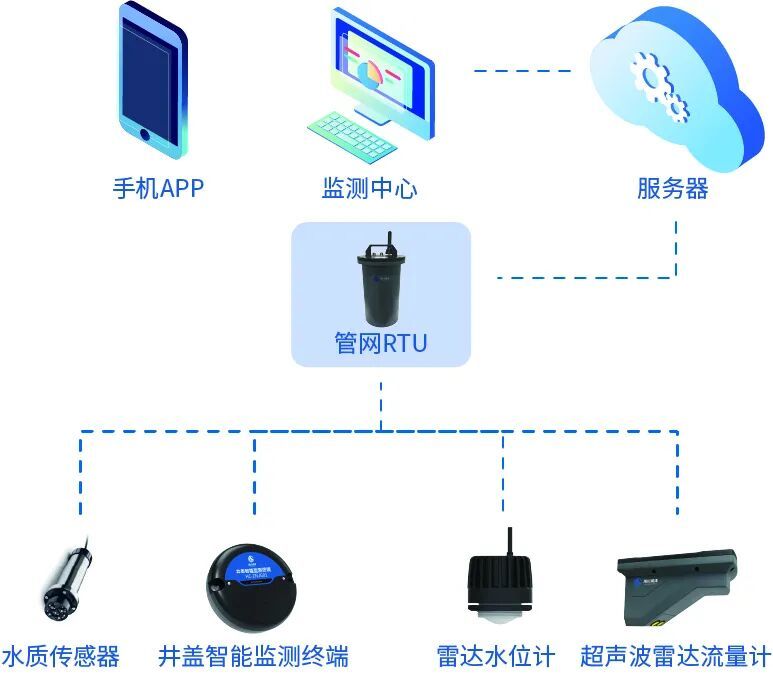

System Composition
It integrates advanced technologies such as modern sensor technology, IoT technology, mobile communication technology, data warehouse technology, and automatic control, realizing functions such as automatic collection of drainage pipe network water level and water quality information, online dynamic monitoring, real-time monitoring and management, auxiliary decision-making, and emergency disposal management.
Real-Time Monitoring
Monitors real-time data including pipe network water level, flow rate, water quality, and manhole cover status.
Data Storage
Stores data such as water level, flow rate, and water quality locally, with power-off protection.
Remote Settings
Supports remote modification of equipment management parameters, automatic time calibration for reporting intervals, and equipment program upgrades.
Data Transmission
Adopts GPRS/CDMA/3G/4G/5G/NB-IoT, optical fiber, and Beidou short message.

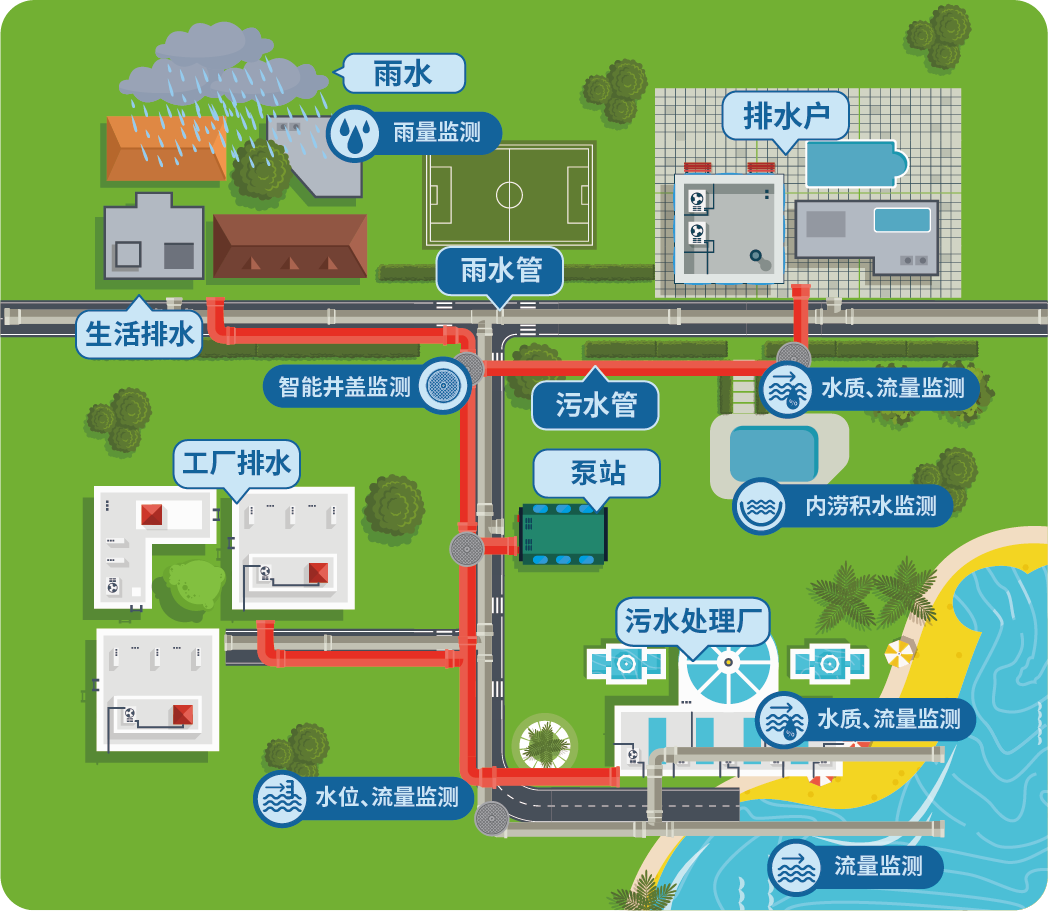

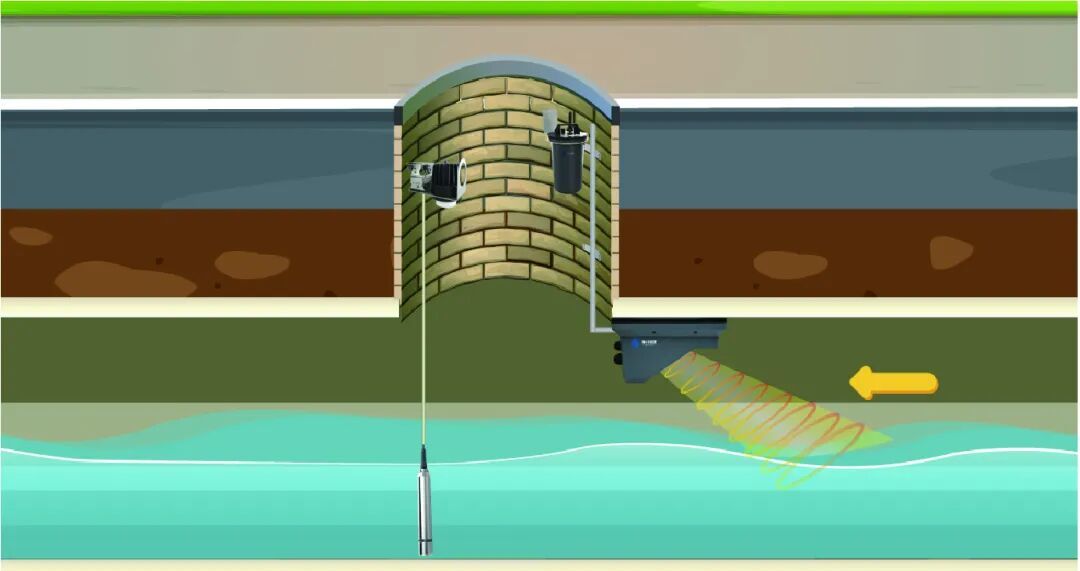

Installation Diagram

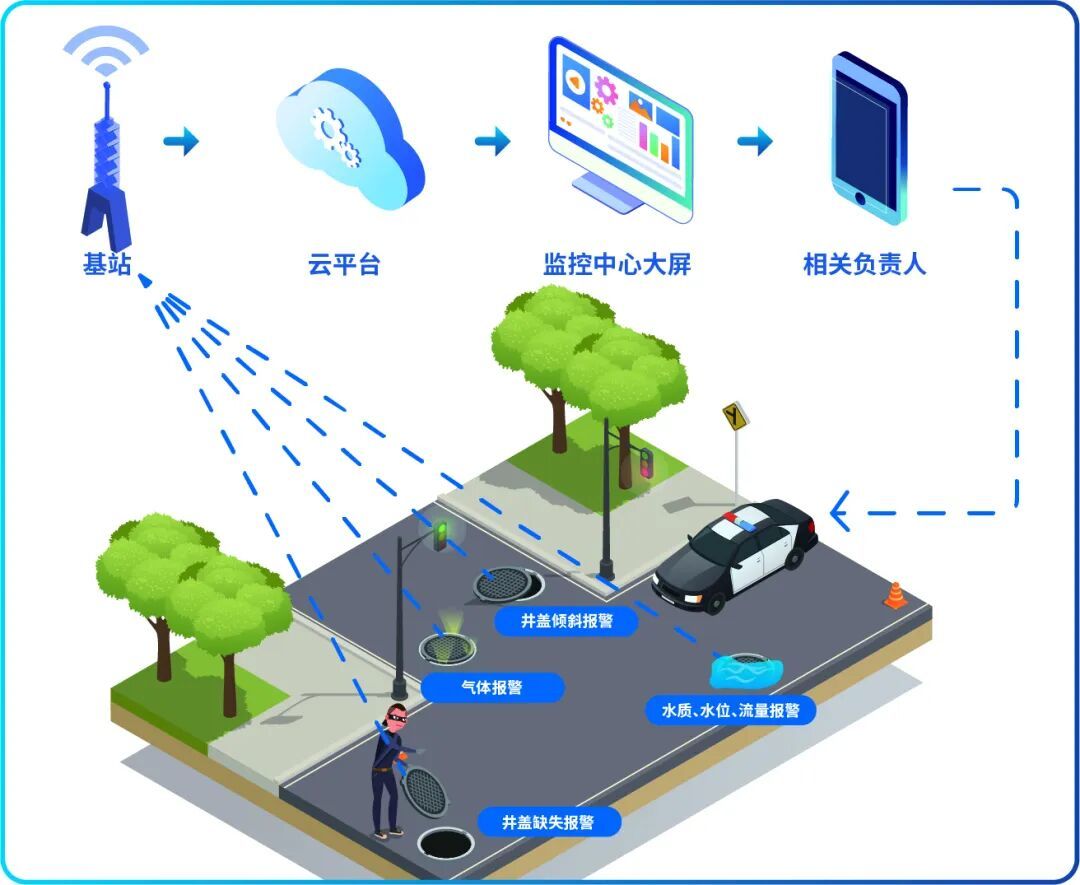

Pipe network monitoring mainly targets manhole water level, pipe network flow rate, water quality, and methane monitoring. It also installs alarm monitoring for manhole covers to avoid safety issues caused by theft, tilting, or loss of manhole covers.

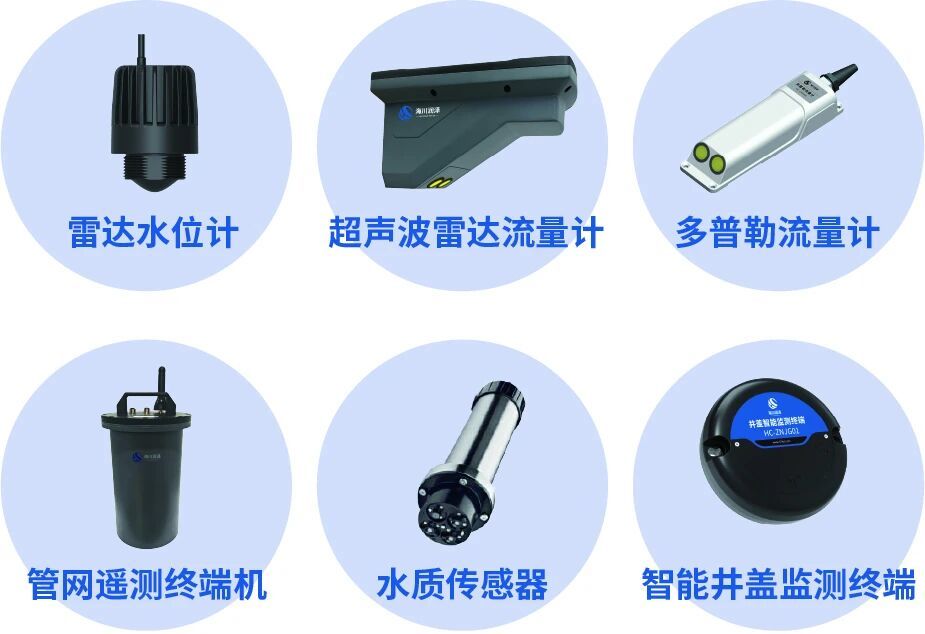

Mainly Involved Products

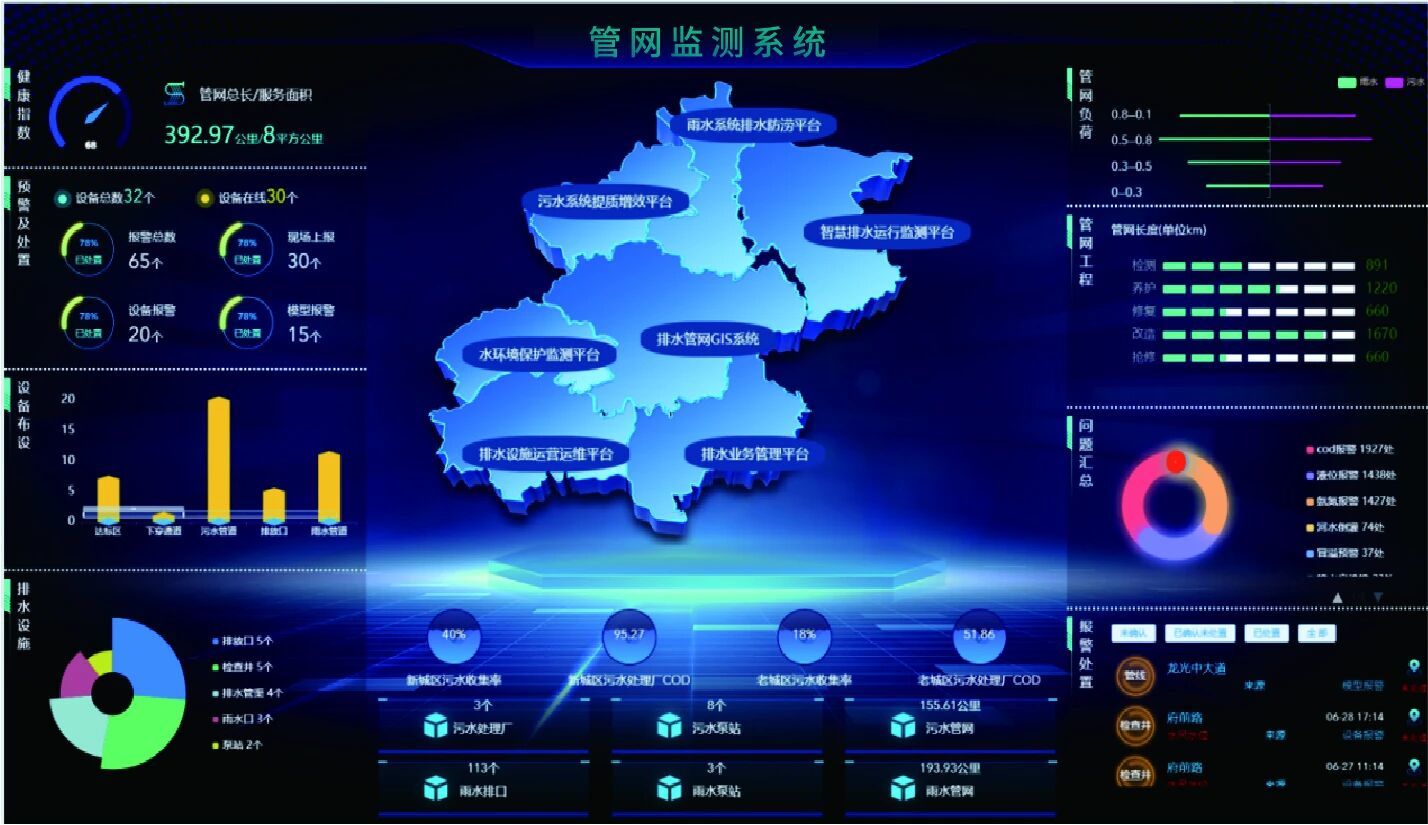

Pipe Network Monitoring System Platform
Asset Management: Electronic information management for rainwater and sewage pipelines and equipment in the area.
Comprehensive Monitoring: Real-time monitoring of various pipe network data, statistical analysis, and report management.
Early Warning Management: Establishment of early warning and forecasting mechanisms for exceeding-limit data and emergencies.
Pollution Source Tracing: Analysis of water quality data, establishment of water quality diffusion models, and tracing of pollution sources.
Intelligent Analysis

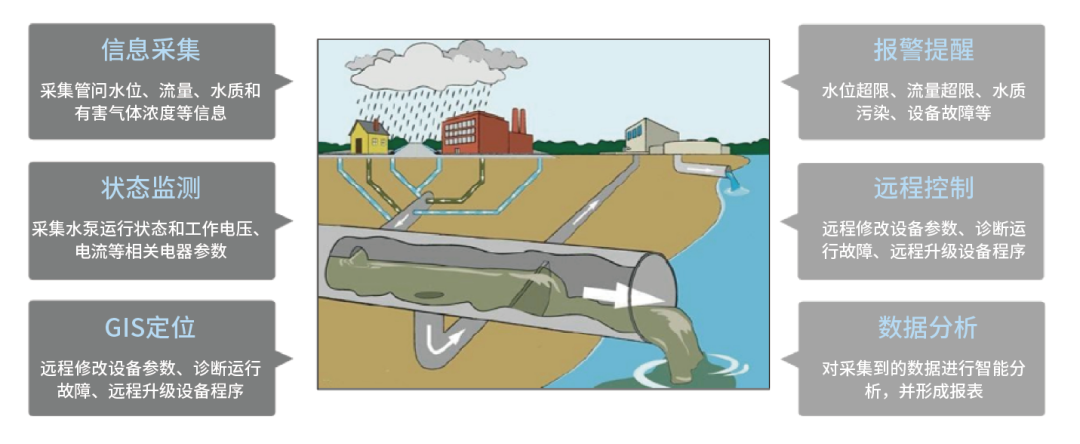

2. Waterlogging and Ponding Monitoring System

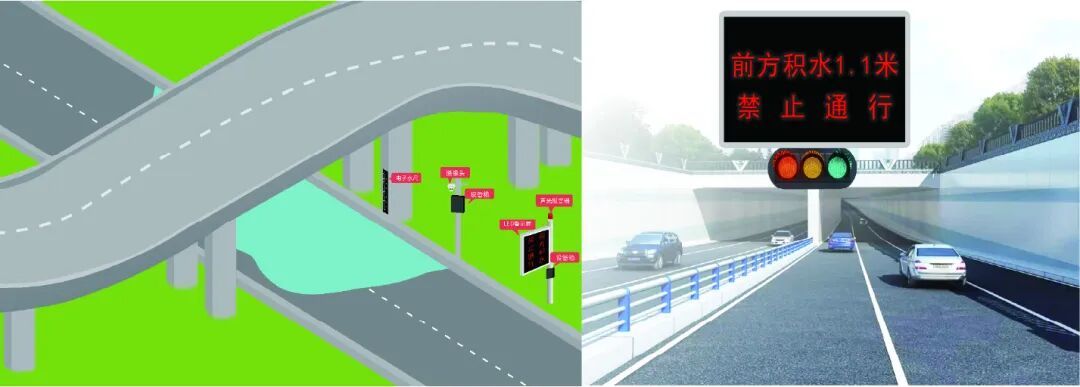

The urban waterlogging (ponding) monitoring and early warning system is a set of monitoring and early warning systems developed and designed based on technologies such as water level and rainfall sensors, image collection, LED early warning information screens, and IoT. It realizes monitoring, early warning, and alerting for water-related and ponding-prone scenarios such as urban underpass tunnels, inland rivers, low-lying road sections, and pipe networks. During rainfall, by defining water-related lines and relevant warning slogans, it provides early warning of ponding conditions, avoids vehicle stalling caused by blind passage and flooding of pedestrians' property, and ensures personal and property safety.
System Composition
Real-Time Monitoring: Monitors real-time data such as water level at ponding points, rainfall, and videos.
On-Site Early Warning: Provides early warning for different levels of ponding through LEDs and alarms.
Remote Settings: Supports remote modification of equipment management parameters, automatic time calibration for reporting intervals, and equipment program upgrades.
Data Transmission: Adopts GPRS/CDMA/3G/4G/5G, optical fiber, and Beidou short message.

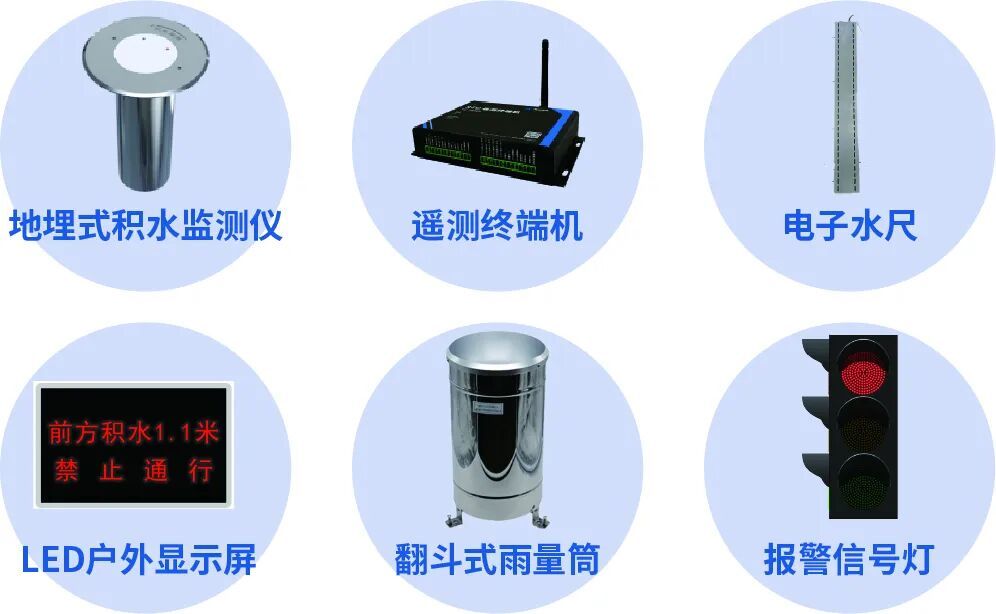

Mainly Involved Products

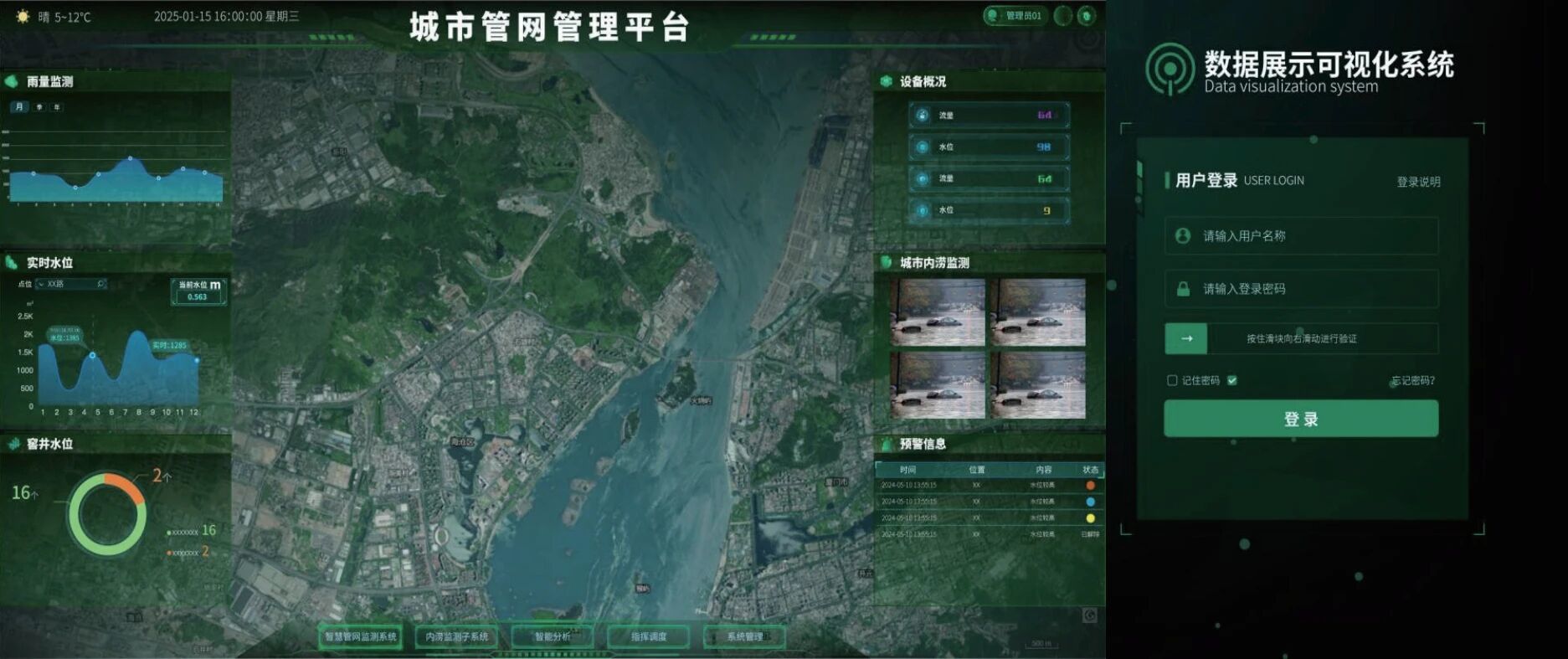

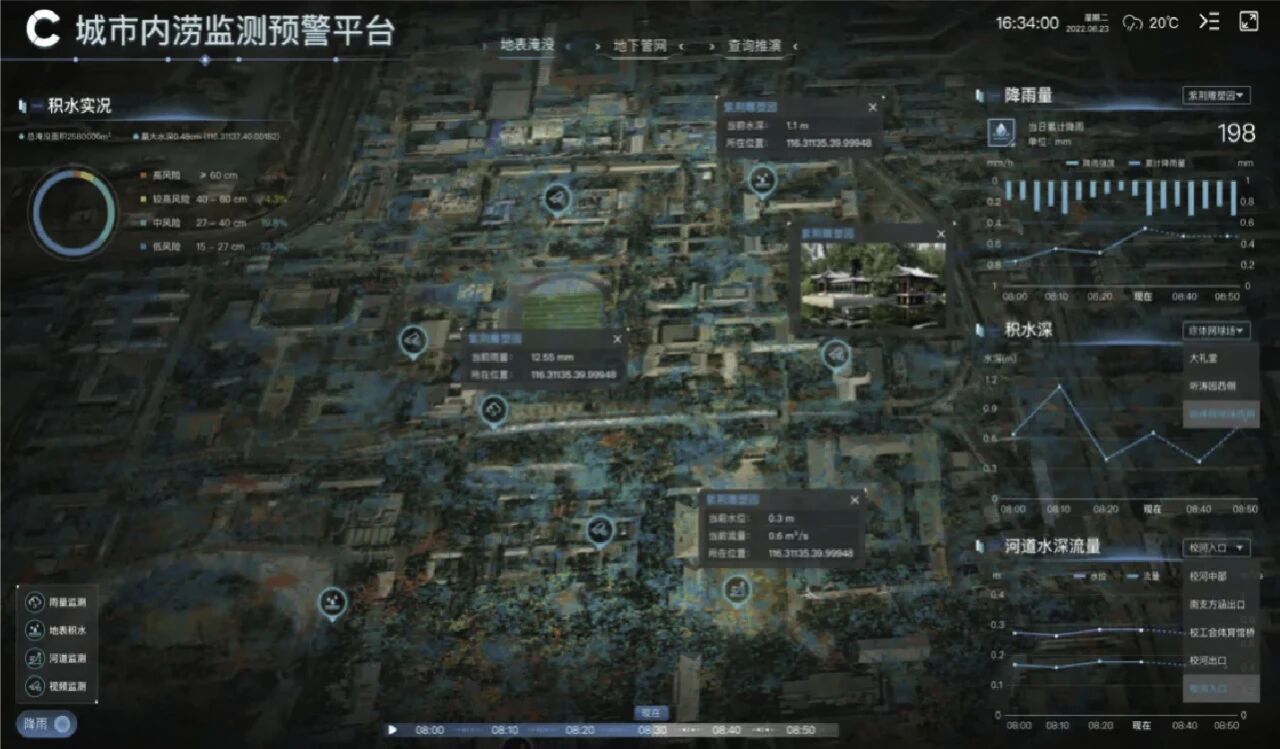

Waterlogging Monitoring System Platform
Waterlogging Integrated Map: Electronic information management for rainwater and sewage pipelines and equipment in the area.
Real-Time Monitoring and Early Warning: Real-time monitoring of various pipe network data, statistical analysis, and report management.
Flood Control and Emergency Command: Establishment of early warning and forecasting mechanisms for exceeding-limit data and emergencies.
Auxiliary Decision-Making Management: Analysis of water quality data, establishment of water quality diffusion models, and tracing of pollution sources.
3. Pumping Station Dispatching and Monitoring System

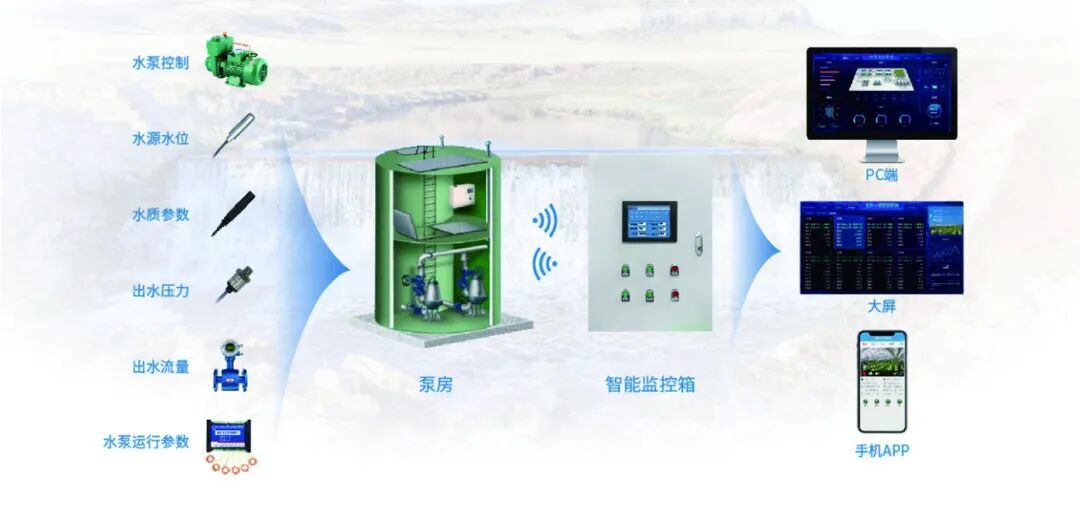

The remote monitoring system for drainage pumping stations is a system that uses modern information technologies such as water conservancy IoT, big data, and cloud computing to manage and monitor drainage pumping stations. It collects real-time data through devices such as flowmeters, rain gauges, liquid level sensors, and intelligent control cabinets, and uploads the data to the smart water conservancy management platform via 5G/4G or WiFi. This enables functions such as real-time data collection, intelligent control, and remote alarm, thereby better supporting the performance analysis of the drainage system, equipment fault maintenance, and flood disaster early warning.
System Composition
Data Collection and Transmission: The system collects real-time data such as the water level of the pumping station and the operating parameters of the motor through on-site instruments and sensors, and transmits the data to the monitoring center remotely.
Remote Monitoring and Control: Managers can view the operating status of the pumping station in real-time at the monitoring center, including information display in the form of text, numbers, and dynamic images. At the same time, the system supports multiple control modes such as on-site control, remote manual control, and automatic control, facilitating managers to conduct remote regulation according to actual needs.
Early Warning and Alarm: The system has an active early warning function. When abnormal conditions such as equipment failure and water level exceeding the limit occur, it triggers the early warning mechanism and actively notifies managers through cloud platform messages, sound and light alarms, and short messages. This helps to detect and solve problems in a timely manner and ensure the normal operation of the pumping station.
GIS Map and Video Monitoring: The system supports GIS map display, which can manually or automatically inspect the dynamic information of pump houses in various places and simultaneously present data such as geographical location and equipment status. At the same time, the system can also access video monitoring equipment to realize video monitoring and video playback functions of the pumping station site, providing strong support for safety prevention work.
Data Analysis and Management: The system can automatically store historical data and support functions such as query, export, download, and analysis. Through data analysis, it can trace the root cause of faults, put forward reference suggestions for equipment modification, optimize the management rules and regulations of the pumping station, and improve management efficiency.
Mainly Involved Products
Pumping Station Monitoring System Platform
Real-Time Monitoring: Collects real-time parameters of the pumping station such as water level, motor operating status, outlet flow rate, and water quality, and forms reports for statistical analysis.
Remote Control: Allows real-time viewing of the operating status of the pumping station. At the same time, the system supports multiple control modes such as on-site control, remote manual control, and automatic control.
Early Warning Management: When abnormal conditions such as equipment failure and water level exceeding the limit occur, it triggers the early warning mechanism and notifies managers through cloud platform messages, sound and light alarms, and short messages.
Video Monitoring: Provides map display and realizes video monitoring and video playback functions of the pumping station site.
Data Management: Stores historical data and supports functions such as query, export, download, and analysis. Through data analysis, it can trace the root cause of faults.
In the wave of smart city construction, Haichuan Runze will continue to uphold the spirit of innovation, continuously improve and optimize the smart pipe network drainage and waterlogging prevention solution, and build safe, efficient, and intelligent drainage systems for more cities, making the urban lifeline more stable and urban life better.
