Smart Irrigation Management Platform
Category:
keyword:
Water Level Sensor section
Overview
Irrigation areas are important bases for ensuring national food security and implementing rural revitalization strategies. Haichuan Runze actively responds to the "water conservation priority" policy and the overall tone of water conservancy reform and development of "filling gaps in water conservancy projects and strengthening supervision in the water conservancy industry", and has launched a smart irrigation area management platform, which covers information technology needs, intelligent equipment applications, precision agriculture needs, resource conservation, and environmental protection.
Through the Haichuan Runze Smart Irrigation District Management Platform, the digitization, intelligence, and refinement of irrigation district management can be achieved, improving the efficiency of irrigation district management, reducing resource waste, increasing the supply of food and agricultural products, and promoting sustainable agricultural development.

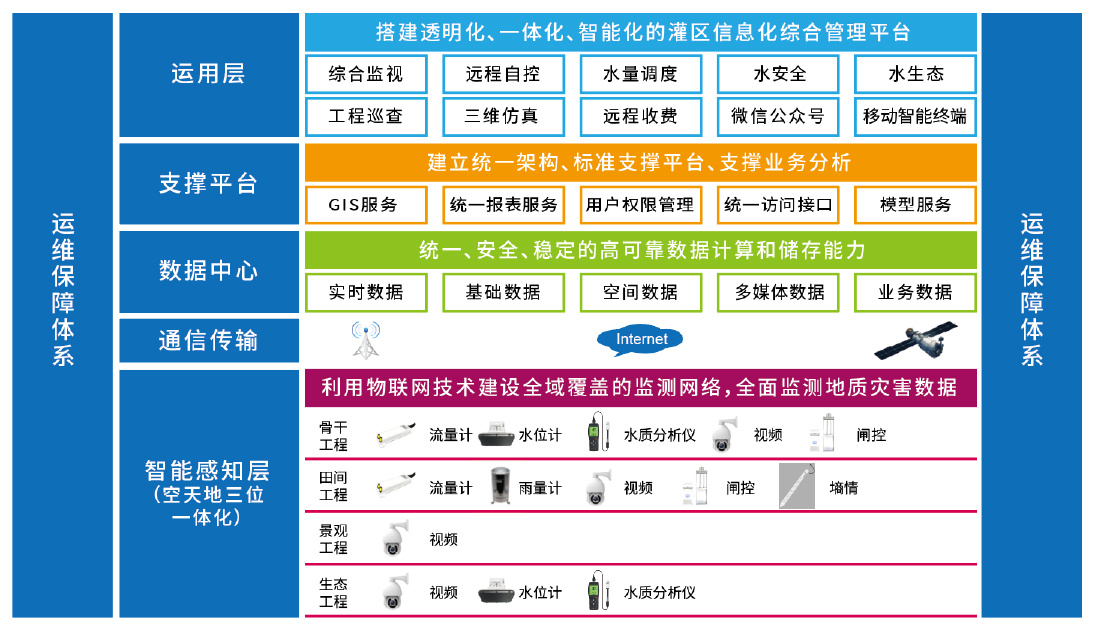

Overall Architecture
The overall architecture can be divided into: intelligent perception layer, communication transmission, data center, support platform, and platform application layer.
The intelligent perception layer monitors and measures the water volume, water level, and other data of each channel in real time through sensors such as flow meters and water level gauges. And watch the live situation in real-time through video
The communication transmission mainly uses wireless 4G communication to achieve data exchange between data and video.
The data center layer implements the storage, preservation, and platform data call management of various data.
The support platform layer mainly provides support services for platform applications, such as GIS map services, report management services, model services, etc
The application layer implements the actual business applications of the platform, involving electronic basic information, comprehensive monitoring, water scheduling, gate control, etc
Application scenarios
Suitable for water resource allocation, irrigation area water resource scheduling, water measurement management, flood control and drought resistance, agricultural water management, water price reform, pump station operation monitoring, soil moisture monitoring, water conservancy engineering management, agricultural and rural big data applications and other projects.
Major function

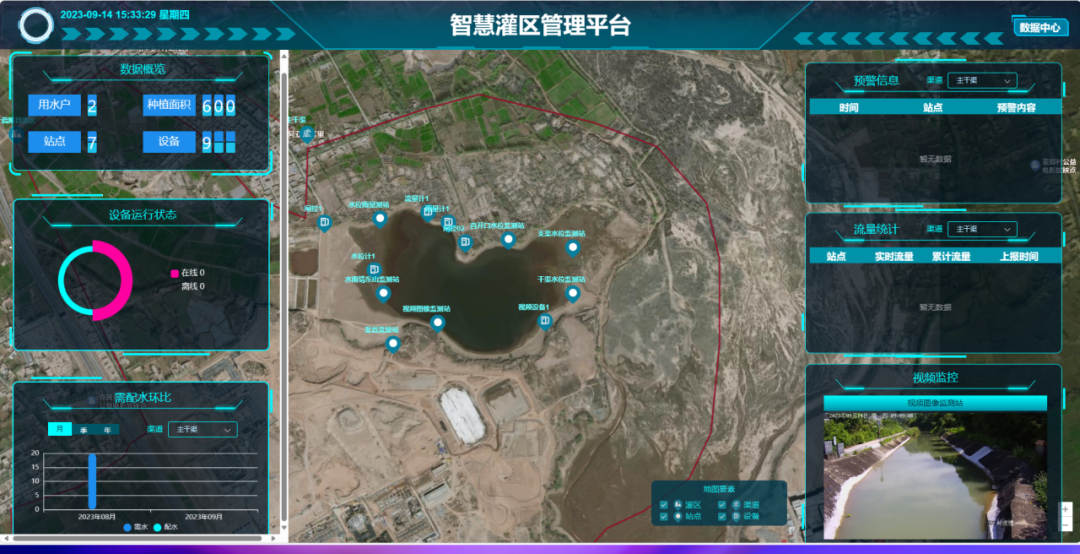

● Irrigation District Management "One Map"
The system monitors and analyzes data, accurately calculates, and provides a scientific data foundation for water volume scheduling, precision irrigation, and water rights trading through data collection platforms. The "one map" is based on the geographical information map of the irrigation area under its jurisdiction, and the content includes but is not limited to data overview, usage summary, equipment operation status, comparative water demand, early warning information, flow statistics, and video surveillance.

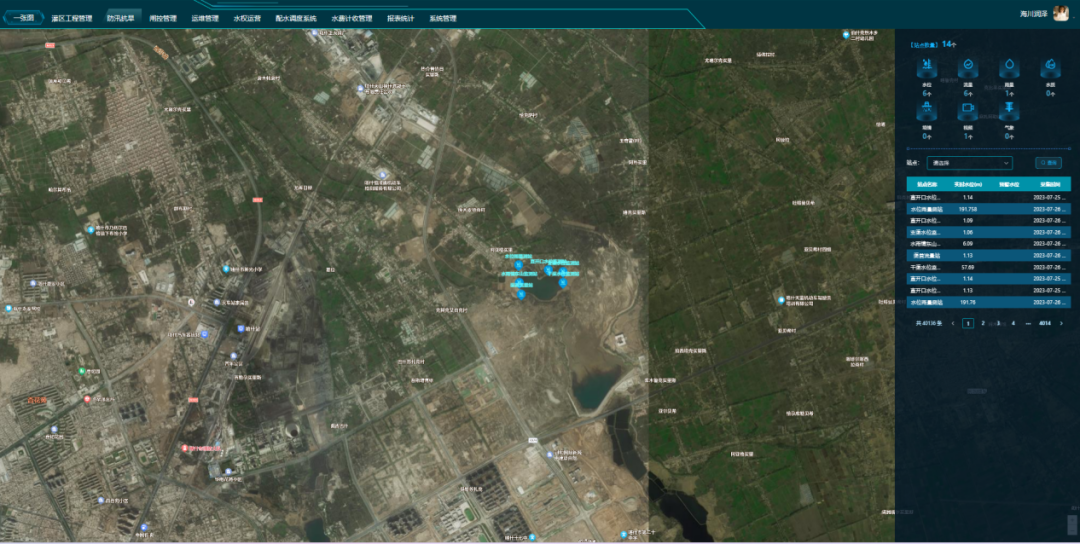

● Flood control and drought resistance
Through the smart irrigation district management platform, the situation of drought warning can be effectively monitored, and droughts of different situations can be dealt with in time. The platform includes real-time information monitoring, warning information release, warning configuration management, and comprehensive query statistics.

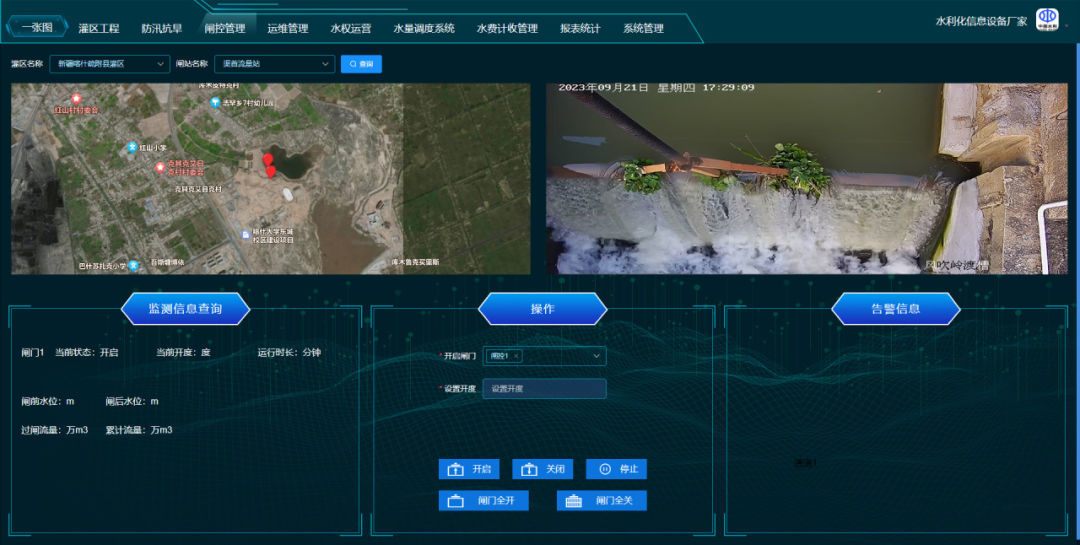

● Gate control management
The gate control system can achieve remote control of the gate on the channel. Gate control management mainly includes gate control, fault reporting and handling, early warning setting, and statistical reports.

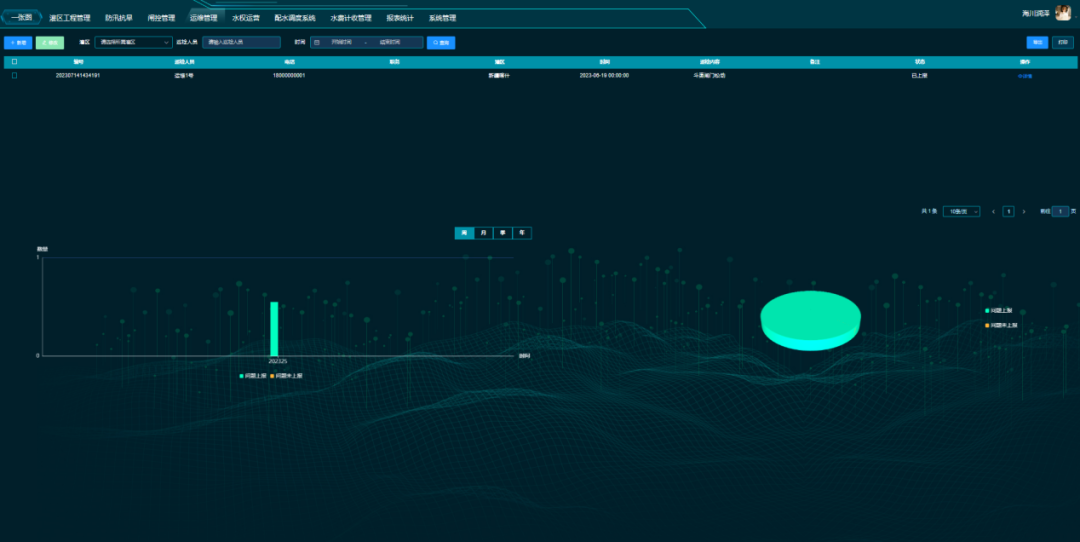

● Operation and maintenance management
Operation and maintenance management is an important job to ensure the normal operation and stability of the platform, mainly including fault equipment, patrol inspection, problem handling, operation and maintenance personnel.

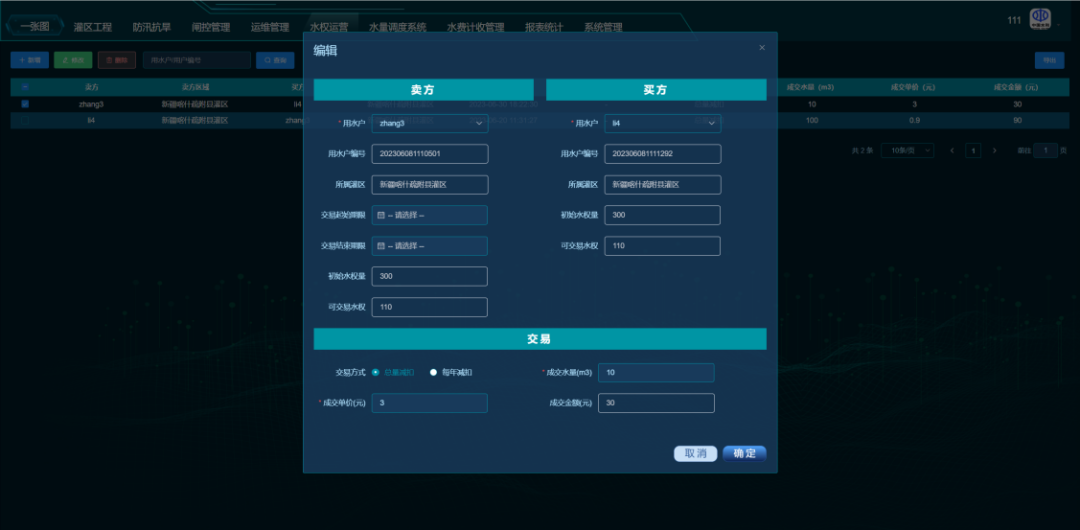

● Water rights operation
Through the water rights trading platform, the efficient and rational allocation of water resources can be realized, promoting the sustainable use of water resources, and thus improving the efficiency and benefit of water use. Water rights operation includes stepped water volume and water price, water rights registration, metering water price allocation, water rights trading, subsidy and reward.
● Water allocation
Irrigation water scheduling can calculate the water consumption of the irrigation area according to the relevant data, so as to compile and schedule the water use plan. The water scheduling system includes water resources, water demand plan, scheduling plan, water distribution scheduling, and water transfer flow statistics.

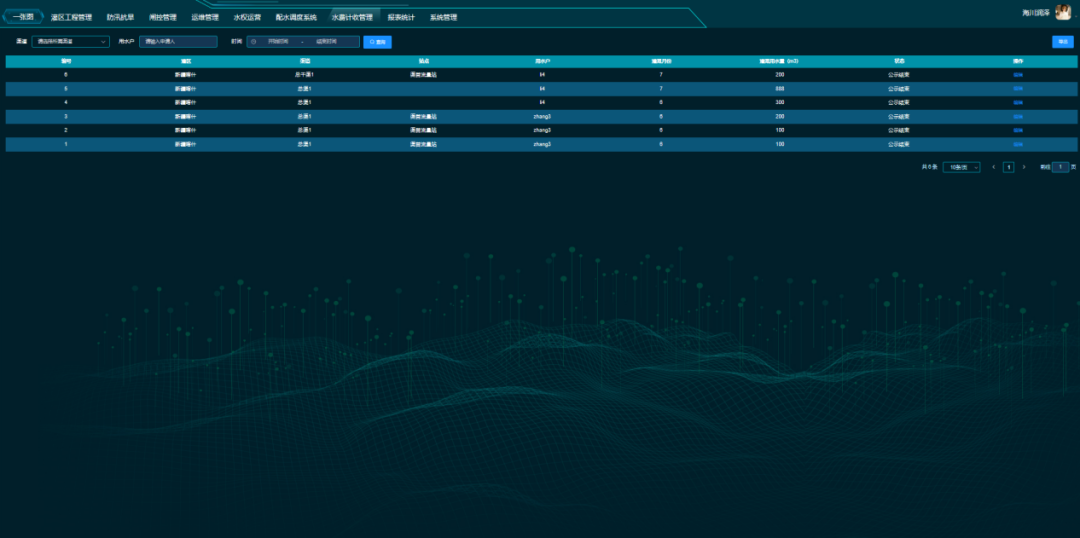

● Water bill collection management
The water fee collection and management is an important content of the irrigation district management. Through the water supply metering and fee collection management, the water fee collection standard is established to realize the informatization of the water fee collection. The water fee collection and management system includes the publicity of water volume, water volume inquiry, fee collection management, fee collection statistics.

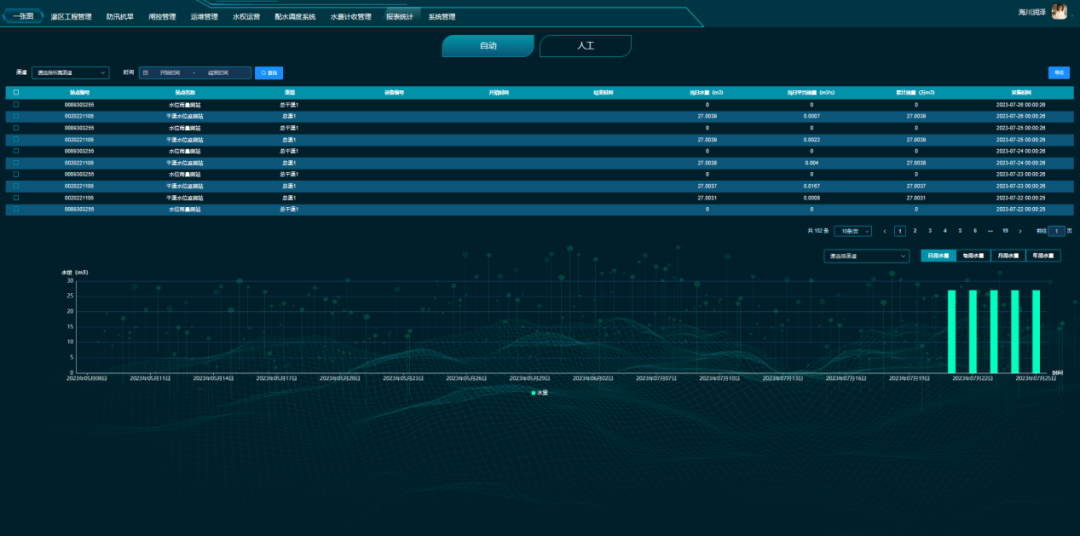

● Report Statistics
The report statistics system includes channel water volume statistics, management unit water volume statistics, water user water volume statistics, and user data summary.

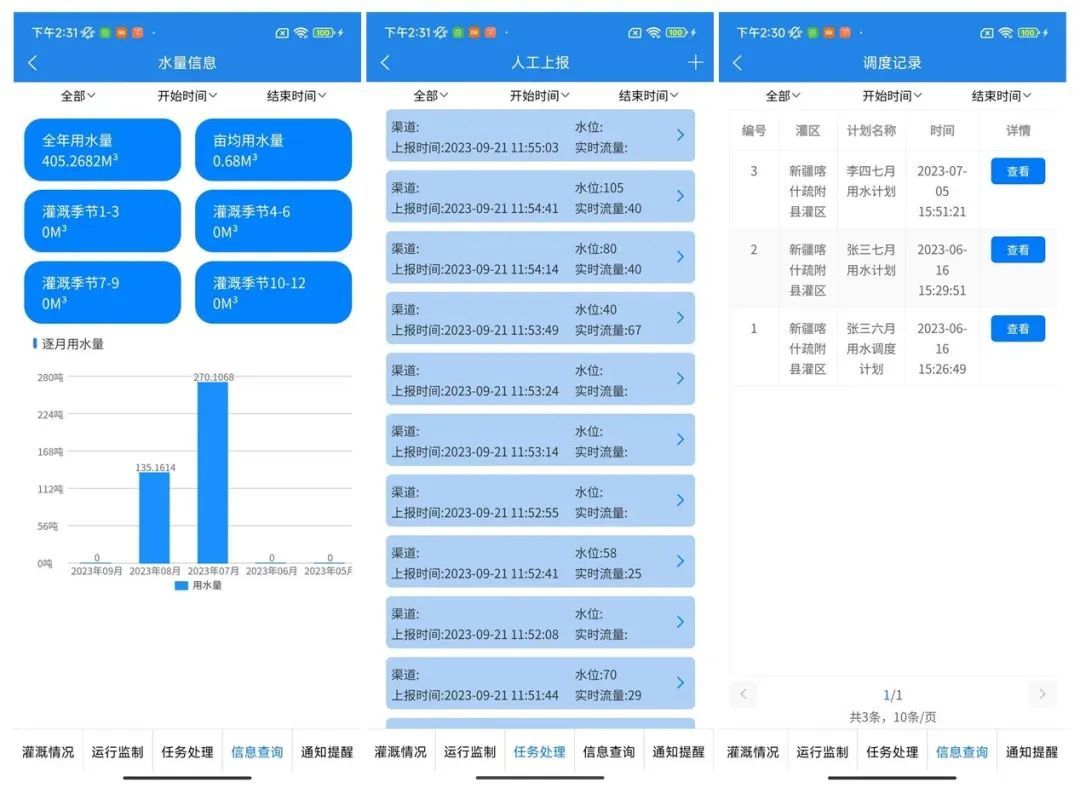

● Mobile applications
Mobile end is not bound by time and space, and can monitor hydrological data, water use and other information in real time, and can also be remotely monitored and managed through mobile apps, WeChat mini-programs and other ways, which greatly facilitates the management of the irrigation area.
Technical parameters
|
FunctionDot |
Functional segmentation and description |
|
Irrigation area map |
Through the "one picture" cabin management, the general situation of the data in the jurisdiction, the analysis of the operation status of the equipment, the water consumption situation, the summary and query of the warning information of the irrigation area, the flow statistics of the flow station, and the video inspection of the on-site working conditions are centrally presented. In the GIS map, the boundaries of the irrigation area, the distribution of the stations, the distribution of the ditches, the distribution of the projects, and the distribution of the equipment are clearly marked. Different annotation layers can be selected for display and viewing according to the needs. Clicking on the corresponding annotation points can see the specific information of the station, equipment, and project. |
|
Basic information management |
Irrigation district information, basic information, document management, station management, equipment management, irrigation district personnel management, operator management |
|
Flood control and drought resistance |
Real-time information, early warning information release, early warning configuration, comprehensive information inquiry (project information inquiry, monitoring information inquiry, water resources information inquiry, emergency reporting) |
|
Gating Management |
Gate control, fault reporting and handling, early warning setting, statistical reports (gate opening records, early warning fault statistics, flow statistics) |
|
Operation and maintenance management |
Equipment fault management, patrol inspection, problem handling, operation and maintenance personnel |
|
Water rights operation |
Step-by-step water volume and water price management, water rights registration, water volume and water price allocation, water rights trading, subsidy and reward. |
|
Water allocation |
Water resources; water demand plan; water distribution plan; water distribution scheduling; water transfer flow statistics. |
|
Water bill collection management |
Water volume disclosure, water volume inquiry, charging management (water charge entry, water charge resolution), charging statistics |
|
Report Statistics |
Channel water volume, management unit water volume, water userswater volume, user data summary |
|
System management |
District management, user management, role management, notification公告, log management |
|
Mobile APP |
Irrigation Status (Irrigating, To Irrigate, Water Confirmation, Irrigation History), Operation Monitoring, Task Handling (Gate Control Fault, Equipment Fault, Manual Reporting, Patrol Reporting, Flood Control Management), Information Inquiry (Alarm Information, Water Fee Information, Water Volume Information, Dispatch Record), My Tasks (To Approve, Notification Document, Personal Center) |
