Wireless Alarm Broadcast Device
Category:
keyword:
Water Level Sensor section
1. Equipment introduction:
The wireless warning broadcast host integrates remote text warning, telephone warning, SMS warning, local microphone and USB insertion functions. It adopts advanced GPRS communication module internally and supports mobile and Unicom network standards (4G network optional) to maintain data communication with the server. The platform software can remotely monitor the online and offline status of the terminal. At the same time, the internal integration of 100W digital function (200W optional) can simultaneously connect 4 groups of speakers to operate at full power, with low standby power consumption.
When geological disasters such as flash floods occur, the terminal can be remotely awakened through channels such as telephone, SMS, GPRS wireless, etc., and warning messages can be sent to the affected area of the geological disaster, and on-site command can be carried out to achieve personnel evacuation and material transfer. This device plays a crucial role in geological disaster warning, flash flood warning, forest fire prevention, flood prevention and disaster prevention.
2. Application direction:
Reservoir flood discharge warning
Flood warning
Geological disaster monitoring and early warning
Forest fire warning
Urban air defense warning
Village debris flow warning

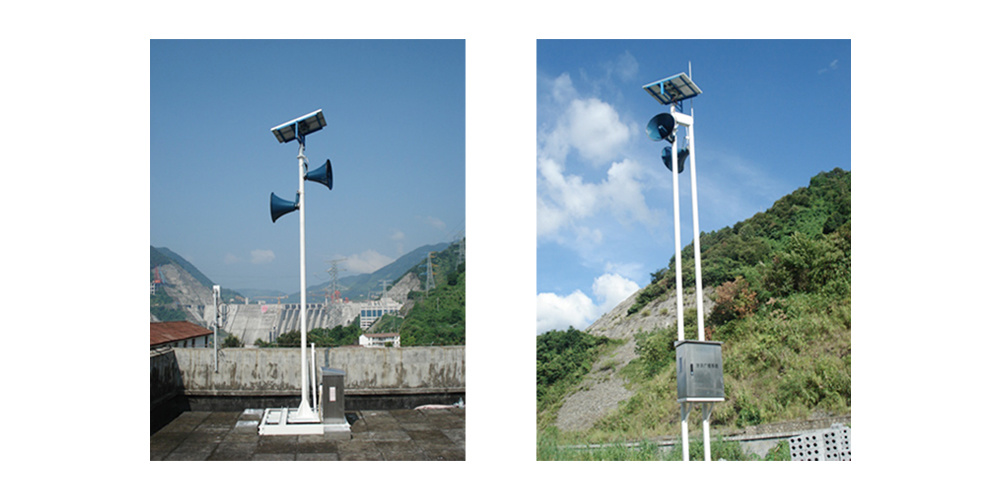

3. Installation diagram:
4. Advantages and features of equipment:
♦ Support local microphone calling and alarm, one click alarm;
♦ Support phone alerts, SMS alerts, and SMS command alerts;
♦ Authorize GSM/GPRS (optional 4G full network) telephone remote broadcasting warning and SMS to voice broadcasting functions;
♦ Support FM frequency modulation (87-108MHz) reception and playback;
♦ Equipped with USB interface and supporting MP3 playback function;
♦ Built in monitoring speaker for indoor monitoring of warning information;
♦ Collect and upload working conditions such as voltage, signal strength, horn status, and geographic location, and provide feedback on the operating status;
♦ Play priority: Emergency alarm → Phone → Microphone → SMS → MP3;
♦ Support whitelist setting function, up to 99 whitelist phone numbers with access permissions can be set;
♦ Support selecting playback content and setting loop playback testing;
Wireless parameters
|
Wireless module |
Industrial grade wireless module (optional single module, dual module or no module) |
|
Standard |
Supports TDD-LTE/FDD-LTE/EVDO/WCDMA/TD-SCDMA/ CDMA1X/GPRS/EDGE; Optional single mode, multi-mode, or full network communication |
|
Theoretical |
FDDLTE(downlink rate 100Mbps, uplink rate 50Mbps); FDDLTE(downlink rate 61Mbps, uplink rate 18Mbps); CDMA20001XEVDORevA(downlink rate 3.1Mbps, uplink rate 1.8Mbps); WCDMA(downlink rate 42Mbps, uplink rate 5.76Mbps); TD-SCDMA(downlink rate 4.2Mbps, uplink rate 2.2Mbps). |
|
Emission power |
<24dBm |
| Sensitivity |
<-109dBm |
GPS parameters (optional)
|
GPS module |
Industrial grade GPS module (optional Beidou module) |
|
Receiver type |
50-channel GPSL1(1575.42MHz)C/A code Support WAAS, EGNOS, MSAS, GAGAN |
|
Maximum update rate |
5Hz |
|
Positioning accuracy |
Location: 2.5mCPE SBAS: 2.0mCPE |
|
Sensitivity |
Tracking:-160dBm, Replenishment:-160dBm, Cold Start:-146dBm |
WIFI parameters
|
Standards and Bands |
Support IEEE802.11b/g/n standard, 2.4G, 1T1R |
|
Theoretical bandwidth |
IEEE802.11b/g: maximum speedup to 54Mbps IEEE802.11n: maximum speed up to 150Mbps |
|
Secure encryption |
Support for multiple encryption methods such as WEP, WPA, WPA2, etc. |
|
Emission power |
13dBm(11n),14dBm(11g),16dBm(11b) |
| Sensitivity |
<-73dBm@54Mpbs |
Other external interfaces and indicator lights
|
WAN |
1 RJ45 10M/100M/1000M adaptive Ethernet port |
|
|
LAN |
8 ports, RJ45 10M/100M auto-adapting Ethernet port, support POE power supply AF&AT (optional) |
|
|
Serial interface |
3 standard RS-485/RS232 serial interfaces time-sharing, support expansion |
|
|
USB interface |
2; USB2.0 |
|
|
Switch input |
No.6 bus |
|
|
Switching quantity output |
6 ways, of which 2 ways support relay output |
|
|
ADC acquisition interface |
8 channels, support 12-bit, 16-bit, 24-bit AD (one of the three) support 0~5V voltage signal, 0~20mA current signal |
|
|
System reset button |
1 piece, reply to the factory recognition, long press for 10 seconds |
|
|
Indicator light |
Power: Power indicator light; Ru HDD: Hard drive indicator light; WA Error: Error alarm indicator light; 4G |
n: System Operation Indicator N: Ethernet Interface Indicator Status: 4G Status Indicator |
Power supply
|
Power interface |
Connect terminal; |
|
Power supply area |
DC9~60V |
|
Working power consumption |
DC48V, standby 1W, WIFI:4W, WIFI+4G:5W DC12V, standby 0.48W, WIFI:3.2W, WIFI+4G:4W |
|
Power consumption description |
Hard disk and camera power consumption, calculated by superimposing the rated power consumption of the corresponding devices. |
Physical properties
|
Case |
Metal shell |
|
Dimensions |
182x152x45mm(not including antenna and mounting parts) |
|
Weight |
1.0kg (excluding antenna and mounting hardware) |
|
Working temperature |
-35℃~75℃(-31℃~167°℉) |
|
Storage temperature |
-40℃~85℃(-40℃~185°℉) |
|
Relative humidity |
95% (no condensation) |
