1. Equipment introduction:
The radar water level gauge sensor is a 26G high-frequency radar type water level measuring instrument, with a maximum measurement distance of up to 70 meters. The antenna is further optimized and processed, and the new fast microprocessor can perform higher speed signal analysis and processing, making the instrument suitable for very complex measurement conditions.
The radar water level gauge uses high-frequency microwave pulses to emit narrow microwave pulses, which are transmitted downwards through the antenna. After the microwave contacts the surface of the measured medium, it is reflected back and then received by the antenna system, which automatically converts it into a water level signal and transmits it to the electronic circuit. (Due to the extremely fast propagation speed of microwaves, the time it takes for them to reach the target and reflect back to the receiver is almost instantaneous.)
2. Application direction:
This device can be widely used in the fields of hydrology and water conservancy information construction, such as hydrology, water resources, and water environment.

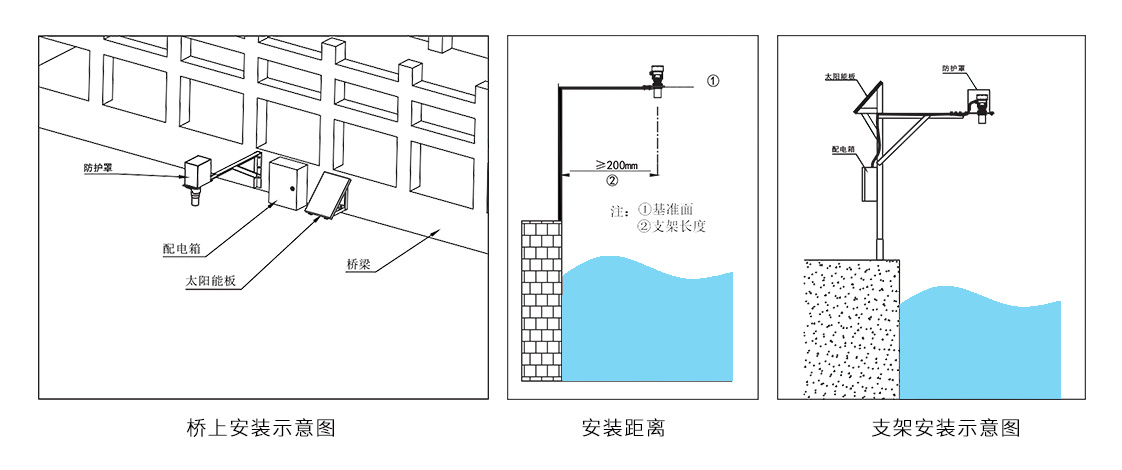

3. Installation diagram:
4. Advantages and features of equipment:
♦ Non contact measurement, no wear, no pollution
♦ Small antenna size for easy installation
♦ Small beam angle and concentrated energy enhance the echo capability while also helping to avoid interfering objects
♦ Almost unaffected by changes in water vapor, temperature, and pressure in the atmosphere
♦ High signal-to-noise ratio, even in fluctuating conditions, can achieve better performance
Technical parameters
|
parameter |
illustrate |
|
Measurement range |
0-30m, 0-70m (optional) |
|
Blind area |
The end of the antenna |
|
Measurement accuracy |
±3mm |
|
Resolution |
1mm |
|
Operating frequency |
26GHz |
|
How it works |
High frequency pulse |
|
Response time |
1S |
|
Beam Angle |
10° |
|
antenna |
Stainless steel |
|
Power supply range |
Recommended 12V |
|
Power consumption |
≤12mA@DC 12V |
|
Communication interface |
Standard RS485 interface, customizable 4-20mA |
|
Communication protocol |
Modbus protocol, customizable protocol |
|
Protection level |
IP67 Vibration resistance: Mechanical vibration |
|
Operating temperature |
-40℃~+85℃ |
|
Working humidity |
95% |
Flare Radar Water Level Gauge PRODUCT SPECIFICATION
