Ultrasonic Water Level Gauge
Category:
keyword:
Water Level Sensor section
1. Equipment introduction
Ultrasonic level meter is a digital level meter controlled by a microprocessor. In the measurement, the ultrasonic pulse is emitted by the sensor (transducer). The sound wave is reflected by the liquid surface and is received by the same sensor or an ultrasonic receiver. It is converted into an electrical signal through a piezoelectric crystal or magnetostrictive device, and the distance between the sensor and the surface of the measured liquid is calculated from the time between the transmission and reception of the sound wave. Due to the non-contact measurement, the media under test is almost unlimited and can be widely used in the measurement of heights of various liquid and solid materials.
2. Equipment application direction
Ultrasonic level meter is suitable for water level measurement at rivers, lakes, reservoirs, reservoirs, estuaries, channels, ship locks and various hydroulic buildings. Therefore, it can be used as a sensor for water level data acquisition system and hydrological automatic measurement and reporting system.

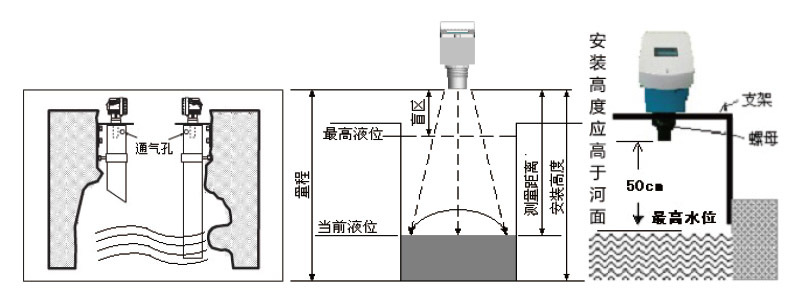

3. Installation diagram
4. Equipment Advantages and Characteristics
♦ The circuit design uses high-quality power modules from the power supply part, and the components are imported highly stable and reliable;
♦ The patented acoustic wave intelligent technology software can perform intelligent echo analysis without any debugging and other special steps;
♦ The patented acoustic wave intelligent technology greatly improves the accuracy of the instrument, and the water level accuracy reach 0.5% FS, which can resist various interference waves;
♦ It is a non-contact instrument that does not come into direct contact with liquids and provides a variety of installation methods. Users can fully calibrate the instrument through this manual;
♦ All input and output lines of the instrument have lightning protection and short circuit protection functions;
♦ It has the characteristics of safety, cleaning, high accuracy, long life, stability and reliability, and easy installation and maintenance. It is suitable for various fields such as acids, alkalis, salts, anti-corrosion, and high temperatures.
Technical parameters
|
show |
The built-in LCD displays water level or space distance |
|
Power supply |
DC12V |
|
Power consumption of the whole machine |
<1.5W |
|
shell |
ABS engineering plastics |
|
Output signal |
RS485, Modbus protocol or custom protocol |
|
Installation method |
Wall-mounted or box-contained installation |
|
Protection level |
IP65 |
|
Operating temperature |
-20~60℃ |
|
Relative humidity |
≤95% |
|
Range |
(0~30)m (selected according to the actual measurement schedule) |
|
Blind area |
0.25m~0.8m |
|
error |
0.5%FS (standard conditions) |
|
Media Temperature |
-20~ 80℃ |
|
Debugging interface |
DB9 socket, RS485, 115200bps |
|
pressure |
Regular pressure |
Ultrasonic Level Gauge PRODUCT SPECIFICATION
