LCD RTU with Rich I/O HC511
Category:
keyword:
Product Overview
HC511 is an industrial remote telemetry unit(RTU) designed for industrial applications, such as water, wastewater treatment, water quality, weather station, air quality, flood disaster alarm, water pump.
HC511 is a perfect RTU that integrates features of PLC, I/O module and 4G/3G modem into one system. By using the powerful config tool software provided by Bivocom, engineer can easily configure the RTU and collect the data from different sensors and controllers without doing any programming.
HC511 RTU supports multiple I/O, such as DI, ADC, RS232/RS485, Relay, Pulse and multiple industrial protocols like MQTT, Modbus RTU/TCP, TCP/UDP, which is ideal for merging legacy and modern sensors and controllers into one system, saving time and cost on hardware investment and maintenance.
This product boasts the following features:
• Multiple I/O
2-RS232, 2-RS485, 8-DI, 8-DO(Relay), 8-ADC, 2-Pulse,
3-Power output, USB, etc
• Remote/Local Data Storage
Up to 5 data centers for sync data storage and backup
Up to 16MB flash and additional 16GB local data storage(via Micro SD card)
• Easy to Configure
Support multiple ways of configuration, through config tool software, keyboard of RTU and remote configuration
• Remote Management
Support remote management via SMS, commands,central management software and DMP
• Multiple Data Transmission Mode
Support Modbus RTU/TCP, Modbus to Json, MQTT and customized industrial protocols conversion and TCP/UDP transparent data transmission mode
• Extendable functionalities
External battery status monitor
Image capture(via serial port camera)
External LCD/LED display(via USB Port)
• Robust and reliable
Industrial grade design, suitable for unattended and harsh industrial applications.
Complete system protection and keep online mechanism, to ensure always online
Appearance Description

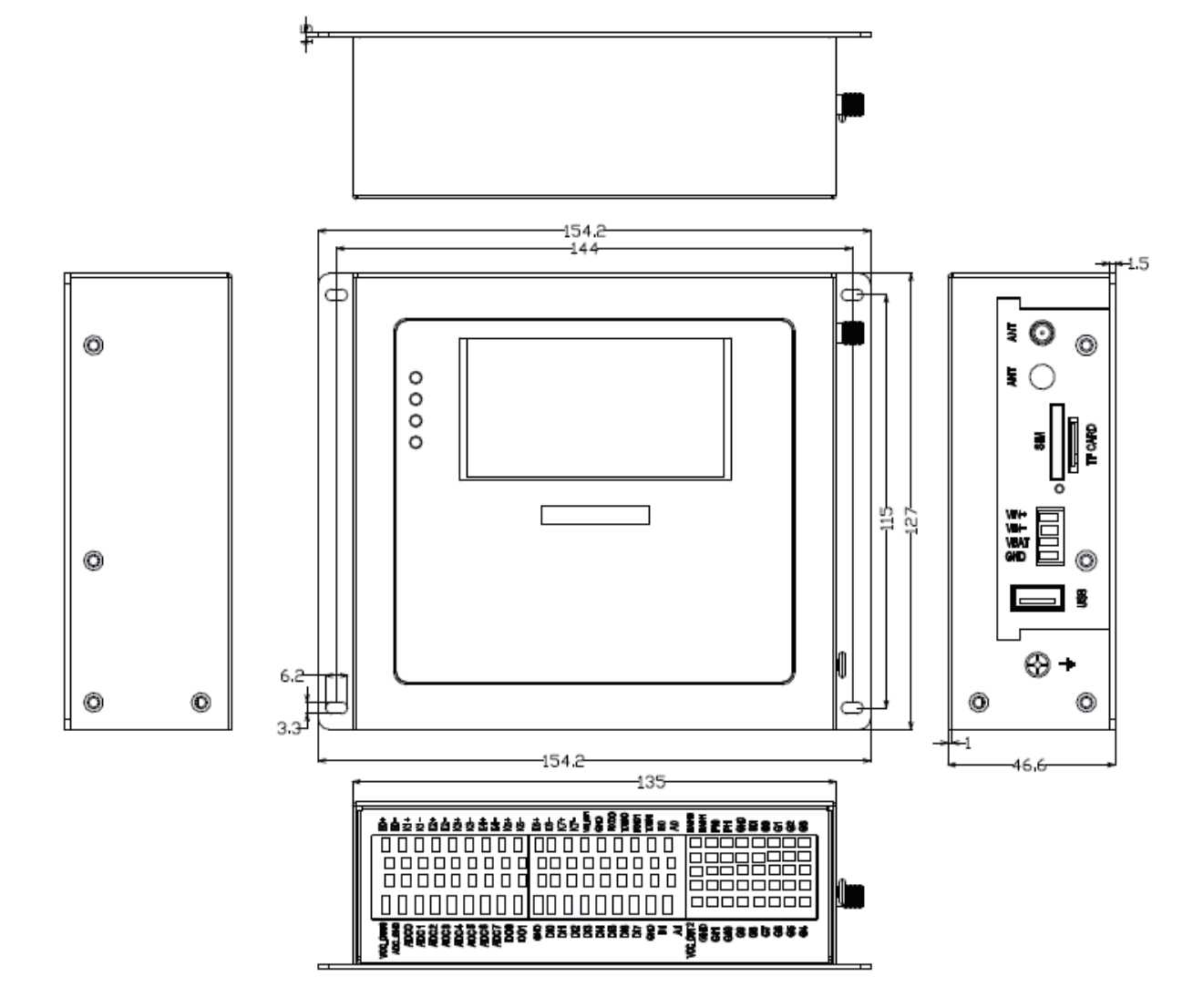

Product dimensions

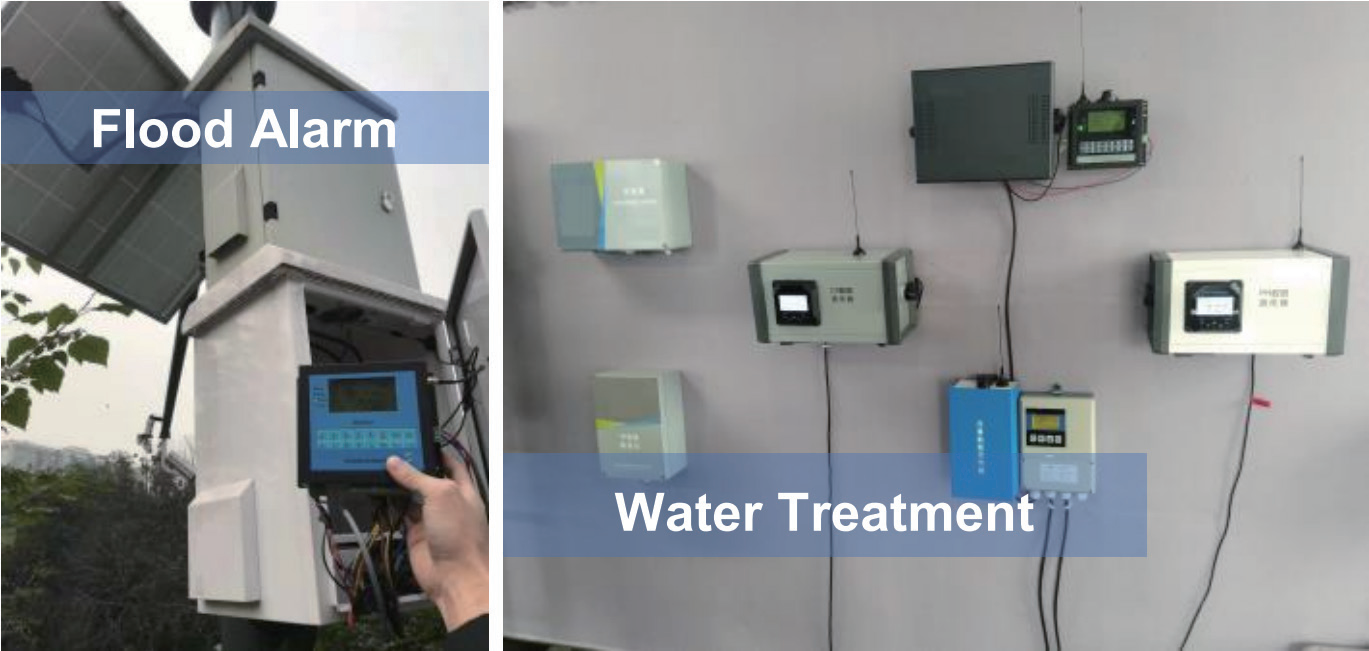

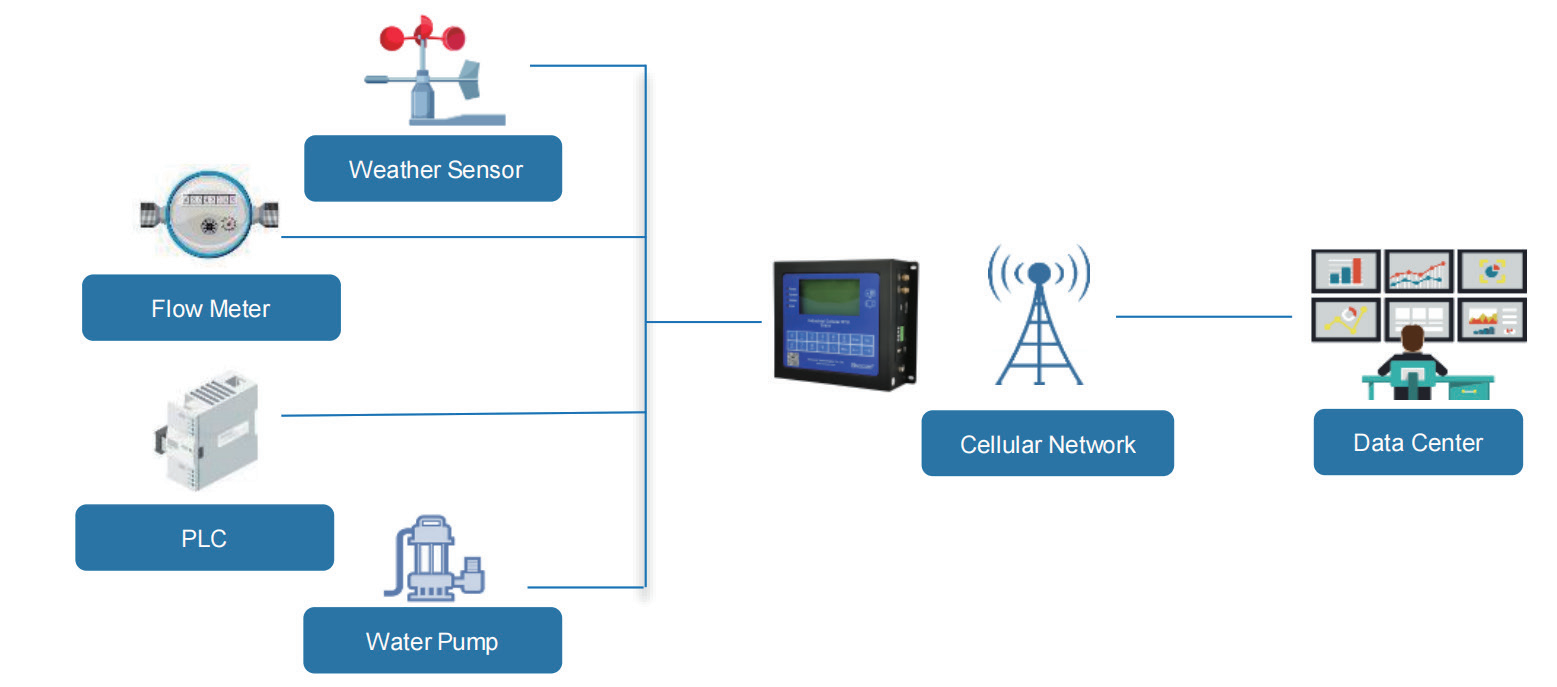

Applications
Success Cases
System
|
Parameter item |
Details |
|
CPU |
Industrial 32-bit MCU |
|
Flash |
16MB |
|
SRAM |
256KB |
Cellular Interfaces
|
Parameter item |
Details |
|
Antenna Connector |
2x 50 Ω SMA Female |
|
SIM Slot |
1 |
|
ESD Protection |
15KV |
Software
|
Parameter item |
Details |
|
Network Protocols |
MQTT,Transparent(TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP) |
|
Management |
Config tool,SMS,Cloud DMP (Device Management Platform) |
Serial Interfaces
|
Parameter item |
Details |
|
Connector |
Terminal block, 3.5 mm female socket with lock |
|
Ports |
2-RS232,2-RS485 |
|
Baud Rate |
300bps to 230400bps |
|
ESD protection |
8KV for RS232, 15KV for RS485 |
Others
|
Parameter item |
Details |
|
Connector |
2-pin with 3.5 mm terminal block |
|
Standard Power |
DC 12V/1.5A |
|
Input Voltage |
5-35 VDC |
|
Communication |
40~85mA@12VDC |
|
Idle Consumption |
40~45mA@12VDC |
I/O
|
Parameter item |
Details |
|
Connector |
Terminal block, 3.5 mm female socket with lock |
|
Analog Input |
8x ADC,16-bit AD 4-20mA current signal input or 0-5V voltage signal input(Option) |
|
Digital Input |
8xDI Status “0”: 0-3VDC, Status “1”:5-30VDC |
|
Digital Output |
2x DO (optical isolation,Open Collector) Rated driving current: 50mA Rated driving voltage:35V |
|
Pulse Input |
4x PI 2xtipping bucket rain gauge input(low level 0-1V) 2x pulse input(high level 2-30V) |
|
Relay Output |
8xRelay Max switching voltage: 30VDC/220VAC Max switching current:4A Max switching power:120W |
USB Port
|
Parameter item |
Details |
|
Port |
1 For external display screen port, able to connect 192*64 dot matrix STN LCD screen with keyboard |
Physical Characteristics
|
Parameter item |
Details |
|
Ingress Protection |
IP30 |
|
Housing &Weight |
Metal, 770g (1.70lbs), without accessories |
|
Dimensions |
154.2x127x46.6mm(6.07x5x1.83inches) |
|
Mounting |
Desktop,Wall mount |
Environmental
|
Parameter item |
Details |
|
Operating Temperature |
-35℃ to+75℃(-31°Fto+167°F) |
|
Storage Temperature |
-40℃to+80℃(-40°F to+176°F) |
|
Relative Humidity |
5% to 95%(non-condensing) |
|
Ethernet Isolation |
1.5kVRMS |
Micro SD Card Slot
|
Parameter item |
Details |
|
SD Card Slot |
1x Micro SD interface, Up to 16GB |
|
Usage |
Data Storage |
Power Output
|
Parameter item |
|
|
Port |
3 12VDC.rated output current of 1 power output is 1A, and total rated output current of 3 power outputs is 2A, built in overcurrent protection |
Standard Package Content
|
HC511 RTU |
1PCS |
|
Power Adapter(DC 12V/1.5A, EU/US/UK/AU plug optional) |
1PCS |
|
Mag-mount Cellular Antenna (SMA Male,1 meter, 5dBi) |
2PCS |
|
RS232 Cable (DB9 Female, 1 meter) |
1PCS |
|
12-Pin Terminal Block |
4 PCS |
|
10-Pin Terminal Block |
2PCS |
|
4-Pin Terminal Block |
1PCS |
LCD RTU WITH RICH I.O PRODUCT SPECIFICATION
