Radar+Doppler 2 In 1 Flowmeter
Category:
keyword:
Water Level Sensor section
1. Equipment introduction:
Ultrasonic radar flowmeter is an intelligent device developed by Haichuan Runze for online monitoring of flow and water level in urban underground drainage, river and sea discharge outlets and other scenarios. The ultrasonic radar flowmeter integrates the application characteristics of radar flow measurement and ultrasonic flow measurement, and is designed for measuring flow and water level without blind spots in complex working conditions of underground pipelines, both in full and non full pipeline scenarios. And it is easy to install and maintain.
2. Application direction:
Suitable for water level and flow monitoring in scenarios such as pipeline networks (outlets, inspection wells, etc.) and underground channels.

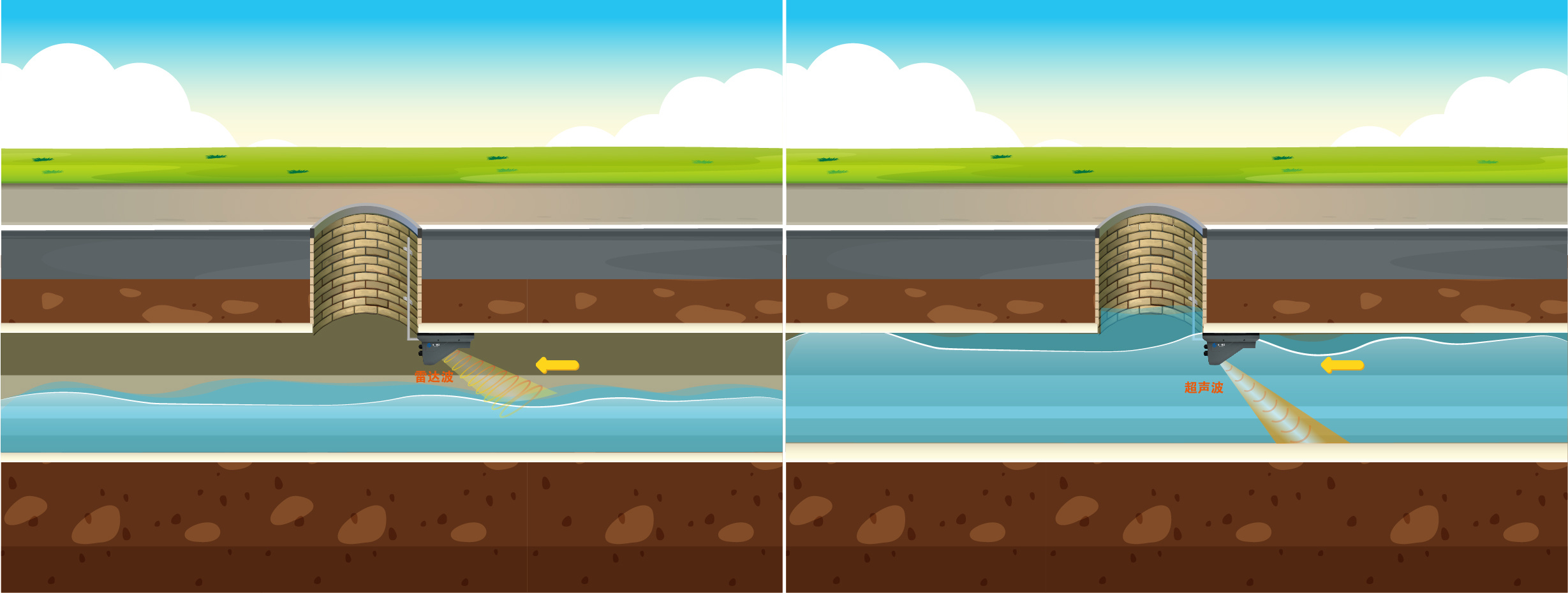

3. Installation diagram
4. Advantages and features of equipment:
Both full and non full tubes can be measured: using a dual-mode flow measurement mode of radar and ultrasound;
Top installation of pipelines: can effectively reduce the impact of silt, debris accumulation, and other factors on equipment;
Dual water level and dual flow velocity measurement design ensures no blind spots in measurement;
Can also measure the water level of vertical shafts, provide early warning, and prevent waterlogging;
Protection design: Waterproof (IP68).
Technical parameters
|
parameter |
Instructions |
|
Radar speed detection range |
0.1-20m/s |
|
Radar speed accuracy |
0.01m/s |
|
Radar speed resolution |
0.001m/s |
|
流 velocity direction identification |
Two-way automatic identification |
|
Radar range |
0-20m |
|
Radar range accuracy |
±2mm |
|
Radar range resolution |
1mm |
|
Ultrasonic speed measurement range |
0.02~6.5m/s |
|
Ultrasonic speed measurement accuracy |
±0.01m/s |
|
Ultrasonic water level range |
0.03-5 meters |
|
Supply voltage (V) |
9~36V DC, recommended 12VDC |
|
Working current (mA) |
500mA DC12V |
|
Working temperature |
-40℃~80℃ |
|
Communication interface |
4G/RS485/RS232(options) |
|
Dimensions (mm) |
207.0*108.6*109.5 |
|
Protection level |
IP68 |
