Urban Waterlogging Warning And Management Platform
Category:
keyword:
Due to the impacts of global climate change and urbanization, urban waterlogging is becoming increasingly severe. Especially in summer, frequent heavy rainfall has led to waterlogging in many cities, which has had a serious impact on the lives and production activities of citizens.。
Requirement Analysis
Low Point of Terrain
These areas are usually located near rivers, lakes, or low-lying areas within cities, with lower terrain that can easily form waterlogging points。
Aging of drainage facilities
Due to unreasonable design, aging, and blockage of drainage facilities, old urban areas have poor drainage
Traffic congestion on major roads
Due to the high traffic volume, dense pedestrian flow, and heavy pressure on drainage facilities, it is easy to become a flood prone area.
Target
Real time monitoring and early warning
Real time monitoring of water level, rainfall, and drainage flow in the city, prediction of waterlogging risk, and real-time graded warning
Data integration and analysis
Identify the patterns and trends of waterlogging occurrence through data analysis, eliminate hidden dangers in advance, and enhance urban drainage capacity.
Improve system stability
Optimize the monitoring system, improve reliability and stability, and be able to cope with severe weather and emergencies.
Multi departmental collaboration and information sharing
Collaboration and cooperation among multiple departments to better respond to waterlogging disasters and reduce losses.

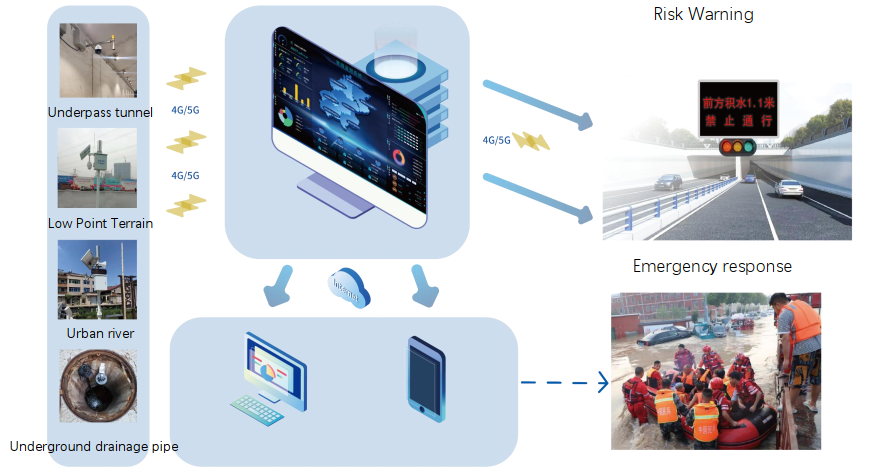

System Diagram

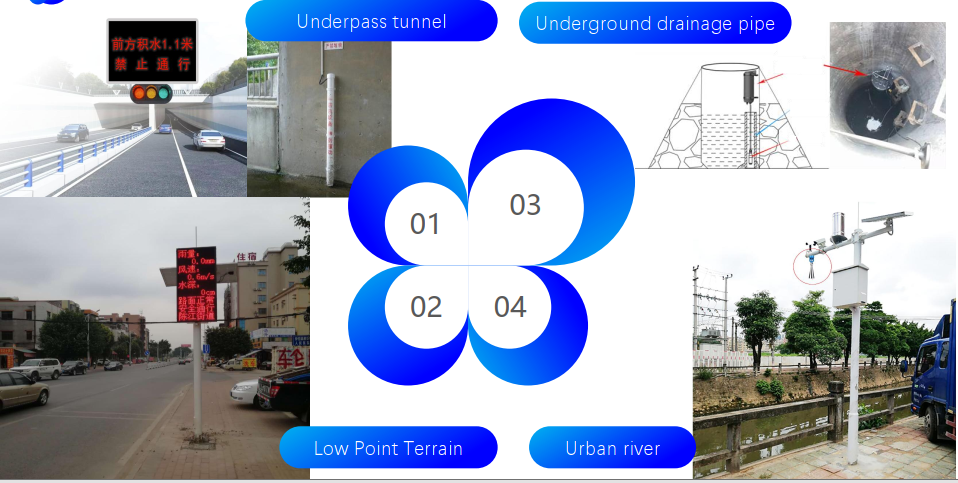

Monitoring points
Underpass channel monitoring station
| Device Name | Purpose |
| Radar Waterlevel Sensor | Suspended installation, non contact, used for water level measurement |
| Electronic Water Gauge | Side wall installation, contact type, used for water level measurement |
| HD Camera | Used for image observation inside tunnels |
| 4G Telemetry Terminal | Used for data collection and transmission |
| Sim card | Communication |
| LED Screen | Installed at tunnel entrances to display the depth of water,to remind |
| Alarm Device | Warning lights flashing to alert of danger |
| Solar Power System | Power for device |
Low Point Terrain monitoring station
| Device Name | Purpose |
| Radar Waterlevel Sensor |
Suspended installation, non contact, used for water level measurement |
| HD Camera | Used for image observation inside tunnels |
| 4G Telemetry Terminal |
Used for data collection and transmission |
| Sim Card | Communication |
| LED Screen | Installed at tunnel entrances to display the depth of water,to remind |
| Solar Power System | Power for Device |
Underground drainage pipe monitoring station
| Product Name | Purpose |
| Radar Dopplar WaterFlow Sensor |
Suspended installation, non contact, used for water level and flow measurement |
| Radar Waterlevel Sensor |
Suspended installation, non contact, used for water level measurement |
| 4G IOT Gateway Terminal With Battery |
Used for data collection and transmission， battery inside,need charged regularly |
| Sim Card | Communication |
| Water quality sensor | Monitoring water quality |
Urban River Monitoring Station
| Device Name | Purpose |
| Radar Water FlowMeter |
Suspended installation, non contact, used for water level and flow measurement |
| Rain Gauge | Rainfall measurement |
| HD Camera | Used for observing the on site situation of the river channel |
| 4G Telemetry Terminal | Used for data collection and transmission |
| Sim Card | Communication |
| Solar Power System | Power for device |
