Industrial 5G IoT Gateway HC463
Category:
keyword:
Product Overview
The HC463 series is a 5G NR IoT gateway designed for IoT, M2M, and eMBB applications requiring higher speed, lower latency data transmission, and capacity of edge computing. It provides OpenWrt based Linux OS embedded environment that allows developers and engineers to program and install their own application based on Python, C/C++ to the hardware themselves. In addition, its rich I/O is ideal for connecting with diverse field equipment and sensors and transferring the data to the cloud server via 5G/4G LTE cellular network.
The HC463 series IoT gateway can be used for a wide variety of applications, such as smart pole, smart cities, smart office, smart buildings, smart traffic light, digital signage advertising, vending machines, ATM, etc.
This product boasts the following features:
• OpenWrt based Linux OS programmable environment for C/C++, Python, LUA via SDK1
• 5G NR Sub-6 bands with SA and NSA dual modes, supports up to DL: 3.4Gbps, UL:
• 250Mbps, ideal for IoT, M2M and eMBB applications 3. Global 5G and LTE-A coverage, back support 3G
• WWAN and WAN failover
• 2.4G and 5G WIFI (802.11b/n/g/ac, Option)
• 5x Gigabit Ethernet port
• 1-RS232, 1-RS485, 2-DI, 3-ADC, 3-DO(Relay), 3-Power Output
• Up to 32G(via Micro SD card) local data storage and backup
• MQTT, Modbus RTU/TCP, TCP/UDP, HTTP, SNMP protocols 10. Multiple VPN protocols, IPsec, L2TP, PPTP, GRE and OpenVPN
Appearance Description

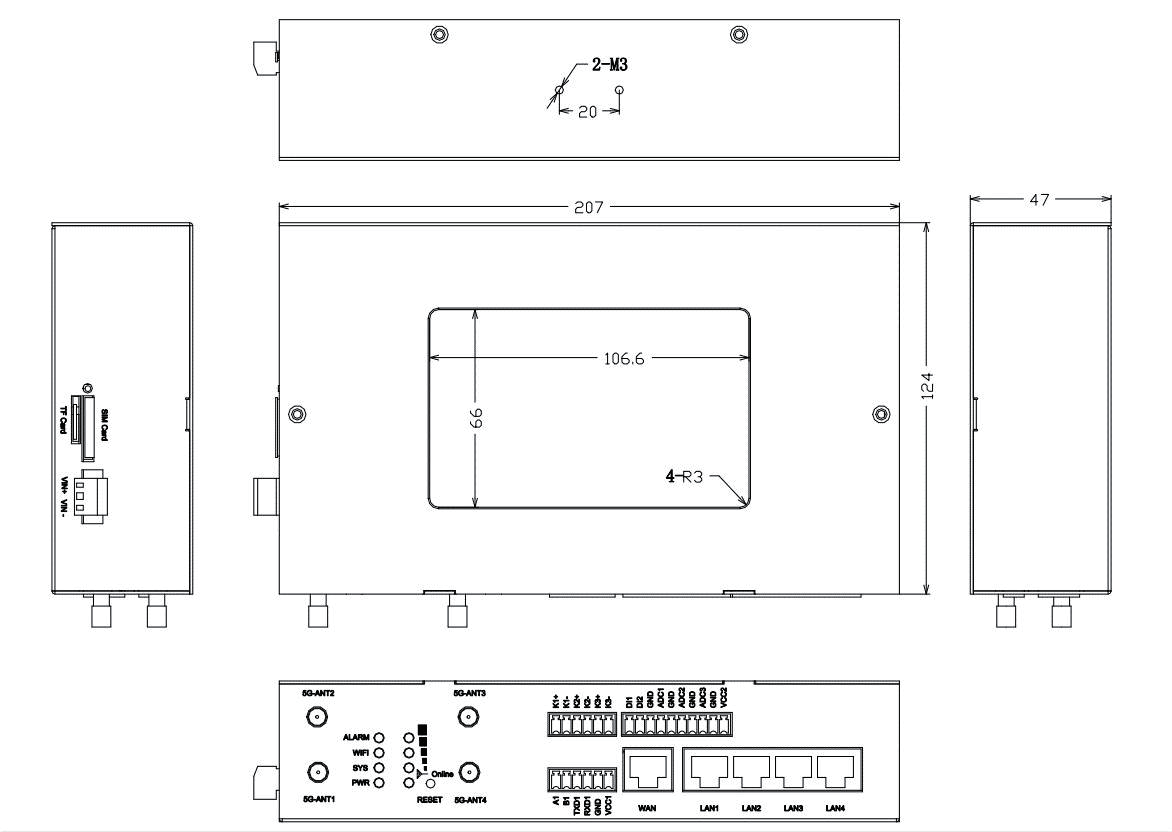

Product dimensions

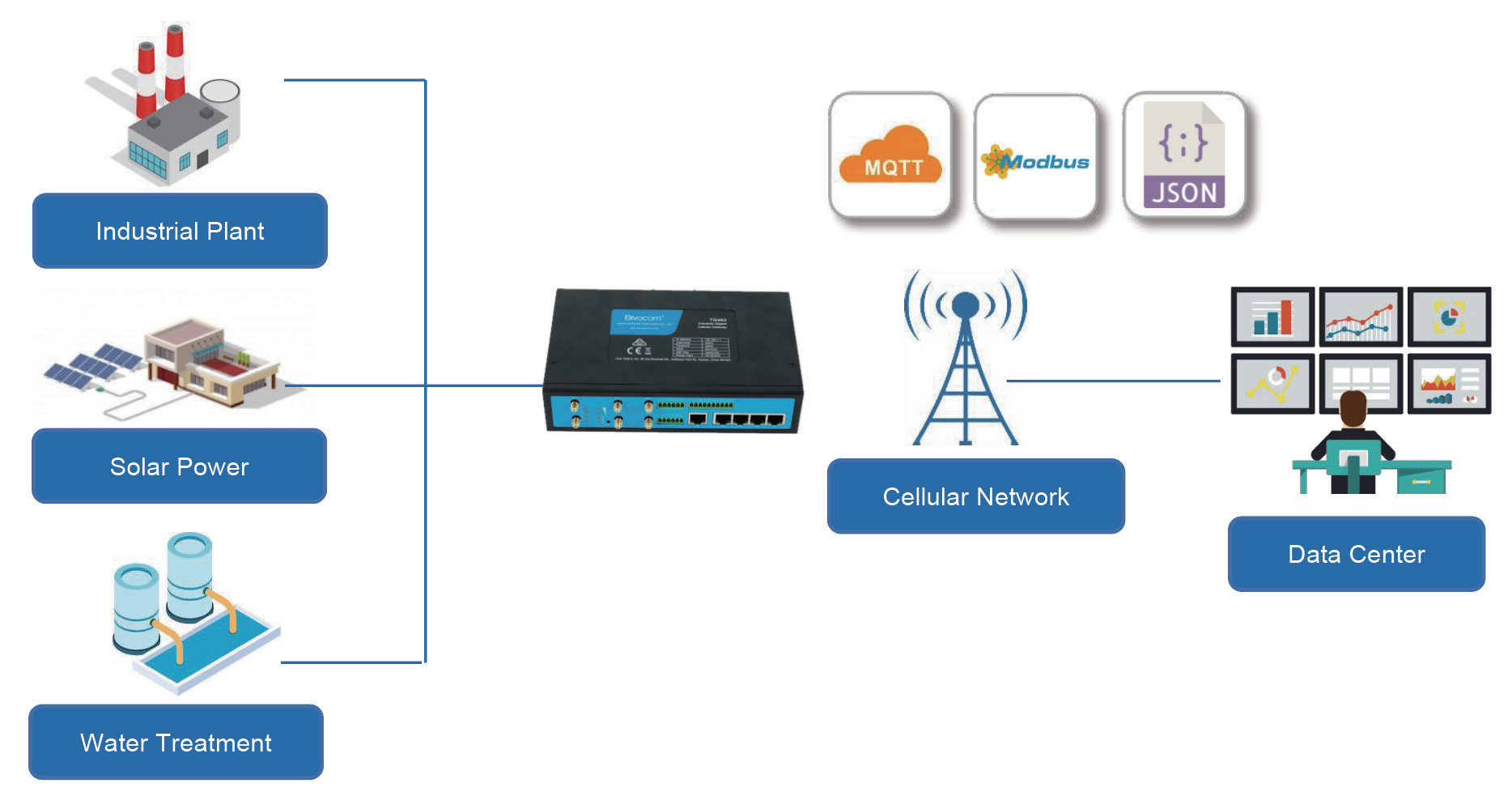

Applications
Applications
System
|
Parameter item |
Details |
|
CPU |
32-bit,dual core |
|
Flash |
32MB |
|
RAM |
256MB DDR3 |
Cellular Interfaces
|
Parameter item |
Details |
|
Antenna Connector |
4x50Ω SMA Female(5G Version TG463-NR) 2x 50 Ω SMA Female(4G Version TG463-LF) |
|
SIM Slot |
1 |
|
ESD Protection |
15KV |
Ethernet Interface
|
Parameter item |
Details |
|
Ports |
5-RJ45 (1-WAN, 4-LAN or 5-LAN configurable) |
|
Data Rates |
10/100/1000 Mbps (Auto-Sensing), Auto MDI/MDIX |
|
ESD Protection |
1.5KV |
Power Supply and Consumption
|
Parameter item |
Details |
|
Connector |
2-pin with 3.5 mm terminal block |
|
Standard Power |
DC 12V/1.5A |
|
Input Voltage |
5-60 VDC |
|
Idle Mode |
253~360mA@12VDC |
|
Working Mode |
318~425mA@12VDC |
Serial Interfaces
|
Parameter item |
Details |
|
Connector |
Terminal block, 3.5 mm female socket with lock |
|
Ports |
1-RS232,1-RS485 |
|
Baud Rate |
300bps to 230400bps |
|
ESD protection |
8KV for RS232,15KV for RS485 |
I/O
|
Parameter item |
Details |
|
Connector |
Terminal block, 3.5 mm female socket with lock 2-DI (0-30V Input) |
|
Digital Input |
Status “0”:0-3V, status “1”:5-30V - |
|
Relay Output |
3-Relay (Up to 5A and 30VDC/250VAC switch) |
|
Analog Input |
3 x 16-bit ADC, supports 4-20mA current signal input, and 0-5V voltage signal input(Option) |
|
Power Output |
2-channel 12VDC output, current 1A) Built-in overcurrent protection, for external devices DC power input |
Software
|
Parameter item |
Details |
|
Network Protocols |
PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP,RIPV1/v2, OSPF, BGP, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, SSH |
|
Serial Port |
MQTT, Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP) |
|
VPN Tunnel |
IPsec/PPTP/L2TP/GRE/OpenVPN |
|
Firewall |
ACL/DMZ/Port Mapping/MAC Binding |
|
Management |
Web, CLI, SMS, Cloud DMP (Device Management Platform)3 |
|
Reliability |
WWAN and WAN Failover, Hardware & Software Watchdog |
|
Secondary Development |
OpenWrt based Linux OS,C/C++, Python, LUA and SDK |
Wi-Fi(Option)2
|
Parameter item |
Details |
|
Antenna Connector |
2 or 4x 50 Ω RP-SMA Female |
|
Standard |
2.4G/5GHz,IEEE 802.11b/g/n/ac,supporting AP and Client modes |
|
Transmission Rate |
IEEE802.11b/g:Upto 54Mbps IEEE802.11n: Up to 300Mbps IEEE802.11ac: Up to 1.7Gbps |
|
Security |
Open, WPA, WPA2, WPA/WPA2 Enterprise, Radius |
Physical Characteristics
|
Parameter item |
Details |
|
Ingress Protection |
IP30 |
|
Housing& Weight |
Metal 1,000g(2.2lbs),without accessories |
|
Dimensions |
207*124*47mm(8.15*4.88*1.85in) |
|
Mounting |
Desktop,DIN-Rail |
Environmental
|
Parameter item |
Details |
|
Operating Temperature |
-35℃to+75℃(-31°℉ to+167°℉) |
|
Storage Temperature |
-40℃ to+80℃(-40°Fto+176°F) |
|
Relative Humidity |
5% to 95% (non-condensing) |
|
Ethernet Isolation |
1.5kVRMS |
GNSS/GPS (Option)
|
Parameter item |
Details |
|
Module |
Built-in independent GPS Module, or GNSS from cellular module |
|
Antenna Connector |
1x50Ω SMA Female |
Others
|
Parameter item |
Details |
|
Reset Button |
1 |
|
LEDIndicators |
Signal strength, WIFI, System, Online, Power, Alarm |
|
Built-in |
Watchdog, RTC, Timer |
|
Approvals4 |
CE*,RCM*,FCC* |
|
Warranty Period5 |
Standard:12 Months Extended:2-5 Years |
External Storage
|
Parameter item |
Details |
|
SD Card Slot |
1x Micro SD interface, Up to 32G |
|
Usage |
User Program, Data Storage and Firmware Upgrade |
Standard Package Content
|
HC463 Gateway |
1PCS |
|
Power Adapter(DC 12V/1.5A,EU/US/UK/AU plug optional) |
1 PCS |
|
Mag-mount Cellular Antenna (SMAMale, 1 meter, 5dBi) |
5G Version:4 PCS 4G Version:2 PCS |
|
RS232 Cable (DB9 Female, 1 meter) |
1 PCS |
|
Ethernet Cable(1 meter) |
1PCS |
|
10-Pin Terminal Block |
1PCS |
|
6-Pin Terminal Block |
2PCS |
|
DIN-Rail Mount Kits |
1PCS |
INDUSTRIAL 5GIOT GATEWAY HC463 PRODUCT SPECIFICATION
