Aluminum Alloy Solar Paddy Sluice
Category:
keyword:
Water Level Sensor section
1. Equipment introduction:
The gate automation monitoring and comprehensive management system mainly detects the upstream/downstream water level of the gate, the inflow flow rate of the upstream watershed, the storage capacity of the reservoir area, the gate load, the gate opening and closing status and opening degree, and the automatic collection and transmission of image information through a computer monitoring system, achieving remote opening and closing and gate manual/automatic control in the monitoring center; And through real-time image monitoring, the operating conditions of the gate and the surrounding environment can be intuitively understood. Real time collection of gate opening using a gate opening meter, and real-time collection of gate load using a gate load meter.
The operator directly controls the gate through this product, improving the degree of automation control and reducing manual errors during the gate operation process. Combined with a remote image monitoring system, the image information and data information of the gate site are intuitively displayed on the same operating interface, mutually verifying each other. The double guarantee of what you see is what you get on the user interface has been achieved. By setting the upper or lower water level, multiple effective ways can be selected to prompt the operator, and the operator can perform autonomous operations at this time.
2. Application direction:
Widely used in the main, branch, and bucket channels of water conservancy irrigation areas for controlling and scheduling water resources.

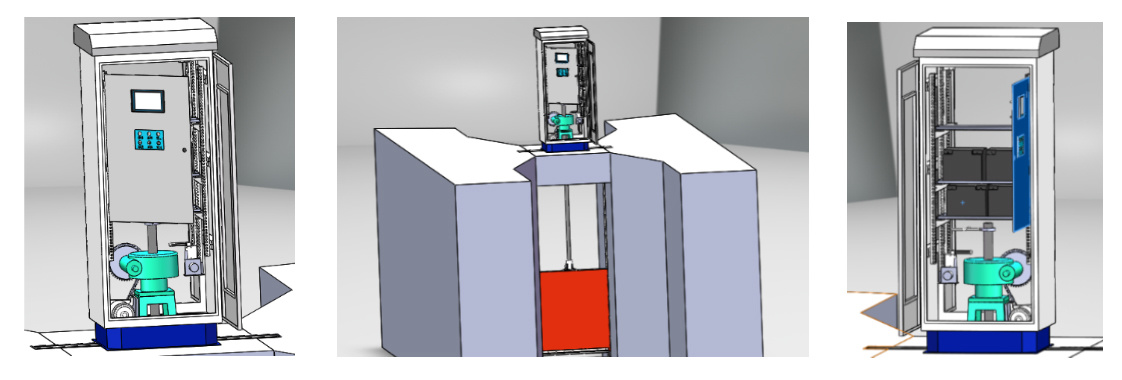

3. Installation diagram
4. Advantages and features of equipment:
♦ The profile adopts T6 series aluminum profile with high strength.
♦ The profile adopts a hard anodizing process, which has high corrosion resistance and wear resistance.
♦ The gate adopts honeycomb aluminum filling technology, which is lightweight and more sturdy.
♦ The drive adopts a turbine worm structure, which can be reverse self-locking for greater safety.
♦ The transmission adopts a steel wire rope transmission structure, with precise control and easy maintenance.
♦ The gate adopts a double-sided sealing structure before and after, which has good water stopping effect.
♦ Supports both AC and DC power supply methods.
♦ Supports wired and wireless communication methods.
♦ Support multiple protections such as overcurrent and positioning to ensure the safe operation of the gate.
♦ Support local buttons, local screens, local Bluetooth, remote APP, and remote web control modes.
Technical parameters
|
parameter |
Instructions |
|
Gate width (mm) |
300, 400, 500, etc., custom made |
|
Gate height (mm) |
300, 400, 500, etc., custom made |
|
Plug stroke (mm) |
300, 400, 500, etc., custom made |
|
Opening and closing speed (mm/s) |
60-180 Adjustable |
|
Position control accuracy |
1mm |
|
Closing force (KN) |
4-20KN |
|
Working voltage(V) |
12VDC |
|
DC motor power (w) |
60-300W |
|
Solar panel (w) |
30W-100W |
|
Battery (ah) |
30ah-80an |
|
Motor form |
DC motor |
|
Gauge type |
Multi-turn absolute encoder |
|
Water level gauge |
Submersible, radar, ultrasonic, magneticContract, electronic water gauge |
|
Support traffic model |
Stage-discharge relationship method: Parshall flume, non-throated flume, stage-difference method; Ultrasonic time-of-flight method: Ultrasonic meter box, multi-layer ultrasonic meter box; Hydraulic method:小时前水位,闸门开度 method, triangular weir method. |
|
Control mode |
Constant upstream water level mode, constant downstream water level mode, constant flow rate mode, valve opening control mode, manual control mode |
