Industrial Mini 5G IoT Routers HC323
Category:
keyword:
Product Overview
The HC323 is a mini industrial 5G NR IoT router designed for IoT, M2M, and eMBB applications requiring higher speed, lower latency data transmission. It provides OpenWRT based Linux OS embedded environment that allows IoT developers and engineers to program and install their own applications based on Python, C/C++ to the hardware.
The HC323 router has 2-Gigabit ethernet ports, 1-RS232(debug), 2-RS485, to connect to ethernet and serial controllers, sensors, transferring the data to the cloud server via 5G/4G LTE cellular network. It comes with industrial protocols, such as MQTT, Modbus RTU/TCP, JSON, TCP/UDP, OPC UA and VPN to provide you an efficient and secure IoT data connectivity between field devices and cloud server.
The HC323 router supports dual sim for failover, providing robust and reliable wireless and wired connectivity for your mission-critical industrial applications, and GNSS to track your remote assets, such as EV charging station, solar power, smart pole, smart cities, smart office, smart buildings, smart traffic light, digital signage advertising, vending machines, ATM, etc.
This product boasts the following features:
• Compact design with DIN-Rail Mounting
• Global 5G NR, 4G LTE to choose1
• 2-RJ45(GbE),1-RS232(Debug), 2-RS485, 2.4G WIFI(Option), GNSS(Option)
• Dual SIM for failover
• OpenWRT based Linux OS, Python, C/C++ programmable2
• Wide operating temperature: -35~+75 °C
• Modbus RTU/TCP, MQTT, JSON, TCP/UDP, OPC UA and customized industrial protocols
• VPN, SNMP, BGP, HTTP, Telnet, SSH, CLI, SPI firewall

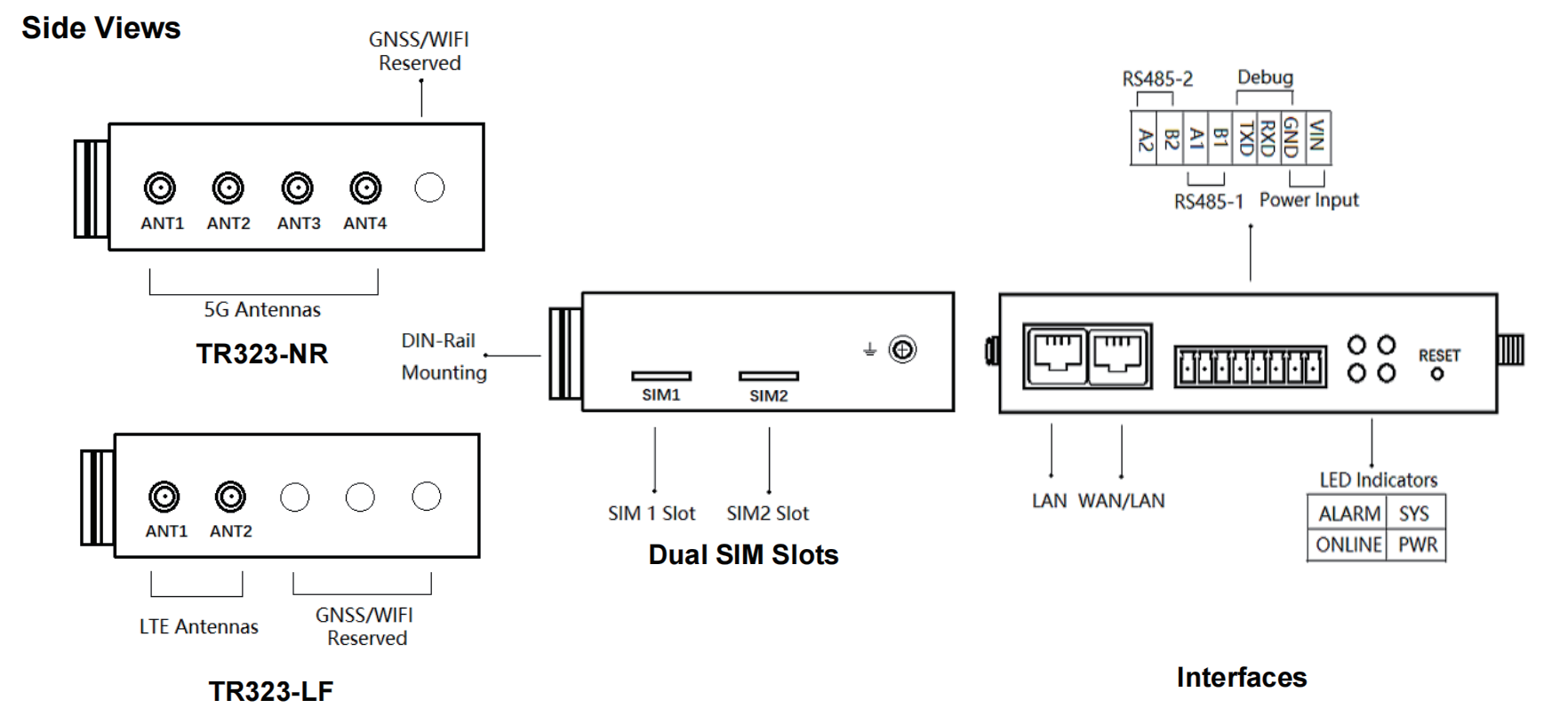

Appearance Description

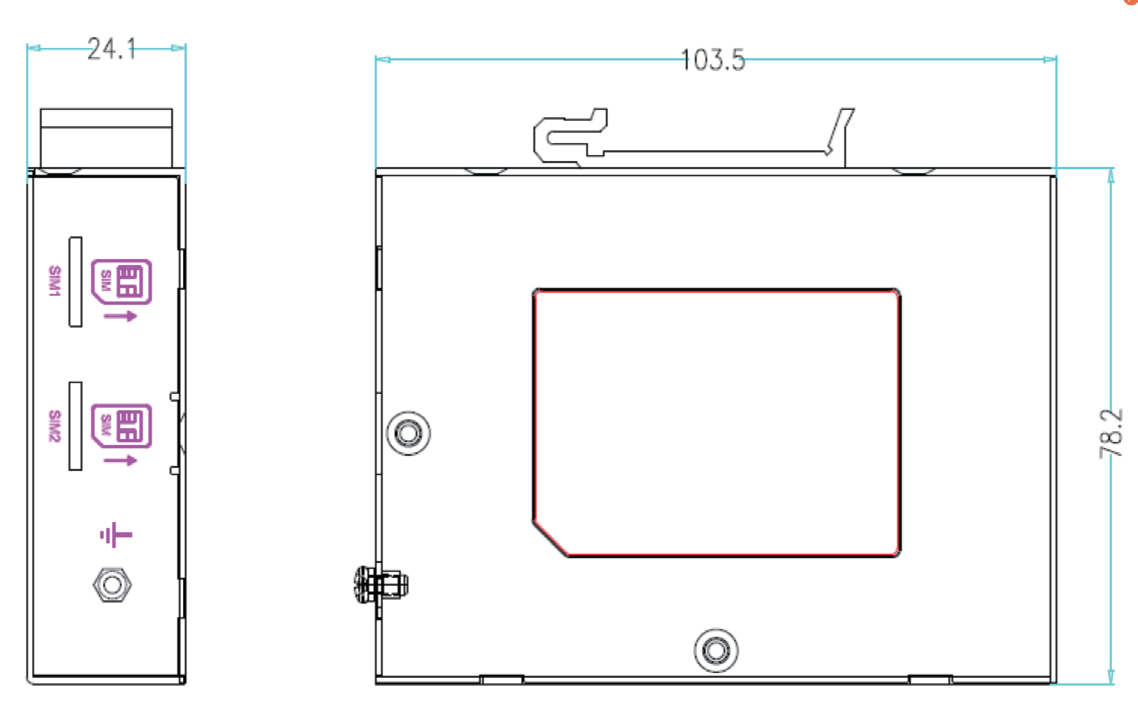

Product dimensions

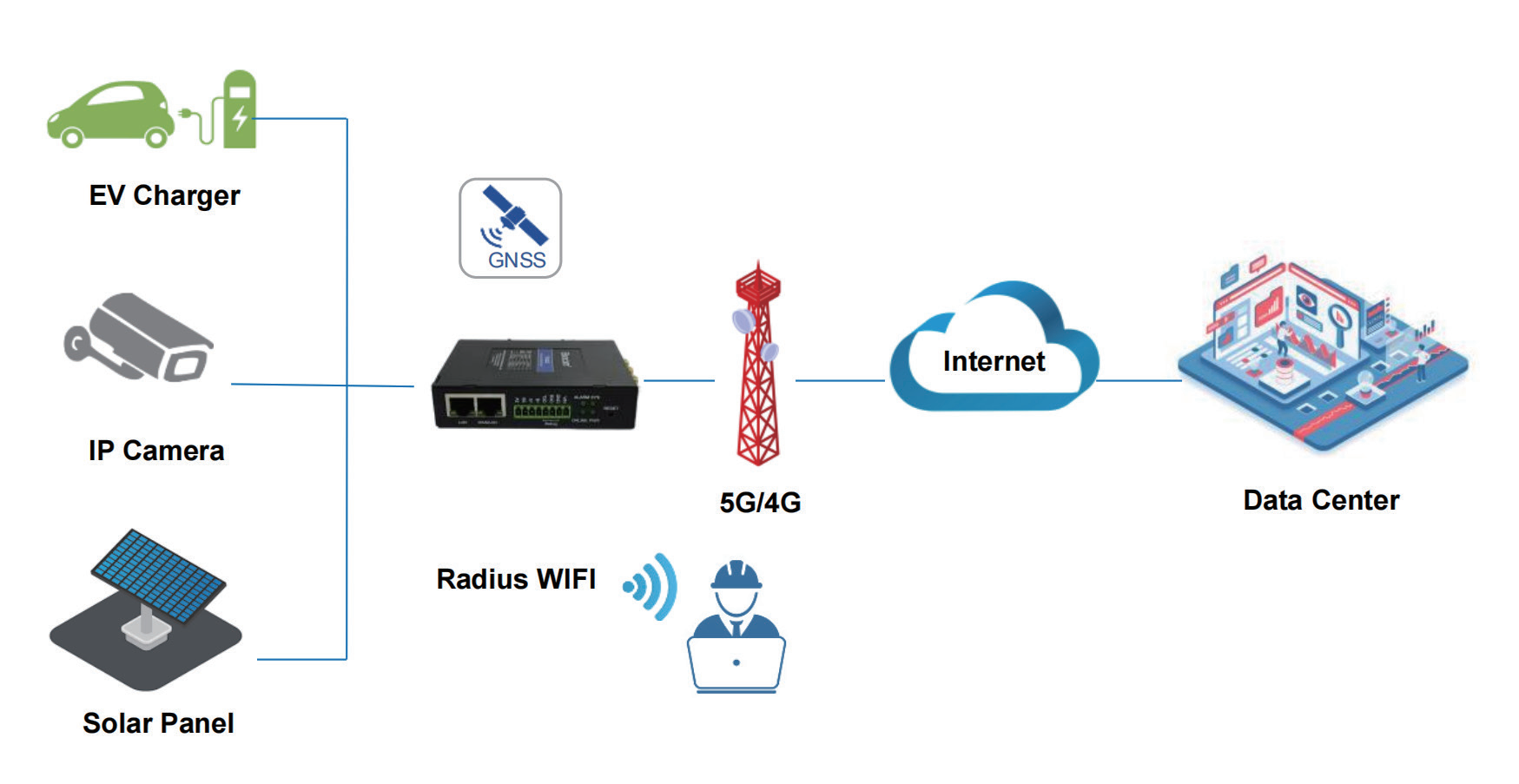

Applications
System
|
Parameter item |
Details |
|
CPU |
32-bit,dual core |
|
Flash |
32MB |
|
RAM |
256MB |
Software
|
Parameter item |
Details |
|
Network Protocols |
PPP,PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPV1/v2, OSPF, BGP, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, SSH |
|
Serial Port |
MQTT, Transparent (TCP/UDP Client/Server), Modbus RTU/Modbus TCP |
|
VPN Tunnel |
IPsec/PPTP/L2TP/GRE/OpenVPN |
|
Firewall |
ACL/DMZ/Port Mapping/MAC Binding |
|
Management |
Web,CLI, SMS,Cloud DMP (Device Management Platform) 4 |
|
Reliability |
Dual SIM,WWAN and WAN Failover, Hardware & Software Watchdog |
|
Secondary Development |
OpenWrt based Linux OS, C/C++, Python, LUA and SDK |
Cellular Interfaces
|
Parameter item |
Details |
|
Antenna Connector |
4x50Ω SMA Female(5G Version TR323-NR) 2x 50 Ω SMA Female(4G Version TR323-LF) |
|
SIM Slot |
2x Micro SIM3 |
|
ESD Protection |
15KV |
Ethernet Interface
|
Parameter item |
Details |
|
Ports |
2-RJ45 (1-WAN, 1-LAN or 2-LAN configurable) |
|
Data Rates |
10/100/1000 Mbps (Auto-Sensing),Auto MDI/MDIX |
|
ESD Protection |
1.5KV |
Serial Interfaces
|
Parameter item |
Details |
|
Connector |
Terminal block, 3.5 mm female socket |
|
Ports |
1-RS232(Debug),2-RS485 |
|
Baud Rate |
300bps to 230400bps |
|
ESD protection |
8KV for RS232, 15KV for RS485 |
Physical Characteristics
|
Parameter item |
Details |
|
Ingress Protection |
IP30 |
|
Housing & Weight |
Metal,268g(0.59lbs),without accessories |
|
Dimensions |
103.50x78.20x24.10mm (4.09x3.07x0.94in) |
|
Mounting |
Desktop, DIN-Rail |
Wi-Fi(Option)
|
Parameteritem |
Details |
|
Antenna Connector |
1x 50 Ω RP-SMA Female |
|
Standard |
IEEE 802.11b/g/n, AP and Client modes |
|
Transmission Rate |
IEEE802.11b/g:Upto 54Mbps IEEE802.11n:Up to 300Mbps |
|
Security |
Open, WPA, WPA2, WPA/WPA2 Enterprise, Radius |
GNSS (Option)
|
Parameter item |
Details |
|
Module |
GNSS from cellular module |
|
Antenna Connector |
1x50Ω SMA Female |
Others
|
Parameter item |
Details |
|
Reset Button |
1 |
|
LED Indicators |
System,Online,Power,Alarm |
|
Built-in |
Watchdog,RTC, Timer |
|
Approvals 5 |
CE*, RCM*,FCC* |
|
Warranty Period6 |
Standard:12 Months Extended:2-5 Years |
Power Supply and Consumption
|
Parameter item |
Details |
|
Connector |
Terminal block, 3.5 mm female socket |
|
Standard Power |
DC 12V/1.5A |
|
Input Voltage |
5-35 VDC |
|
Idle Mode |
200~230mA@12VDC |
|
Working Mode |
360~430mA@12VDC |
Environmental
|
Parameter item |
Details |
|
Operating Temperature |
-35℃to+75℃(-31°℉ to+167F) |
|
Storage Temperature |
-40℃to+80℃(-40°Fto+176°℉) |
|
Relative Humidity |
5% to 95% (non-condensing) |
|
Ethernet Isolation |
1.5 kV RMS |
Standard Package Content
|
HC323 Router |
1 PCS |
|
Power Adapter(DC 12V/1.5A, EU/US/UK/AU plug optional) |
1 PCS |
|
Mag-mount Cellular Antenna (SMA Male,1 meter,5dBi) |
5G Version: 4 PCS 4G Version:2 PCS |
|
RS232 Cable (DB9 Female, 1 meter) |
1 PCS |
|
Ethernet Cable(1 meter) |
1 PCS |
|
8-Pin Terminal Block |
1 PCS |
|
DIN-Rail Mount Kits |
1 PCS |
Industrial Mini 5G IoT Routers HC323 PRODUCT SPECIFICATION
