Flexible Inclinometer
Category:
keyword:
Water Level Sensor section
1. Equipment introduction:
The flexible inclinometer (HC-CXY01) is a new type of intelligent 3D deformation monitoring sensor that is suitable for various industry applications. It is mainly used for measuring displacement (deformation), angle, acceleration, vibration, and temperature in 3D space. The core technology of sensors has been maturely applied in hydropower The accuracy and stability of data in multiple monitoring fields such as railways, tunnels, slopes, tailings, and foundation pits have been rigorously verified.
2. Application direction:

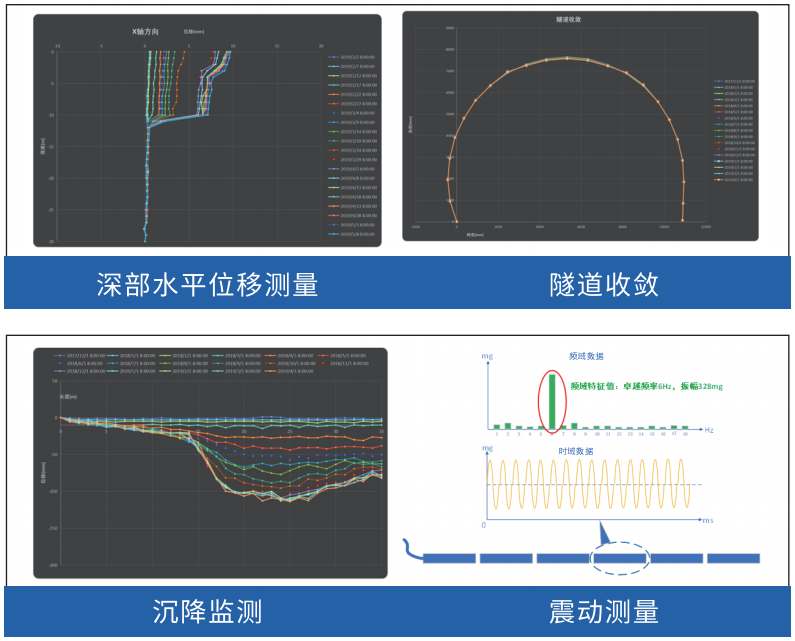

Applied in the fields of internal settlement and horizontal displacement of water conservancy dams, large reservoir dam slopes, railway and highway slopes, geological disaster landslides, tunnel convergence deformation, deep displacement of foundation pits, deformation of large structures such as oil and gas pipelines, deformation of ancient buildings, deformation of offshore wind power foundations, and deformation monitoring of deep-sea pipelines.
3. Advantages and features of equipment:
* Accurately measure displacement in three-dimensional or two-dimensional space;
* High integration, internally integrated with data acquisition and operation modules, directly outputting spatial coordinates, frequency, amplitude and other data without external calculation;
* Using standard RS485 interface (default) or RS232 interface output, it can be directly connected to DTU, serial server or other data acquisition devices, making integration very convenient;
* Twist self correction function (applicable to settlement and convergence monitoring scenarios);
* Powerful interface protection and anti reverse power supply function;
* Excellent lightning protection and anti-static performance (± 60kV/600W);
* Sealing grade: IP68 dustproof and waterproof grade;
* Water pressure resistance: Standard version 2MPa (at a depth of 200 meters); High water pressure resistant version 4.5MPa (450 meters depth).
Technical parameters
|
parameter |
Instructions |
|
|
Measuring direction |
X, Y, Z three-dimensional or X, Z two-dimensional |
|
|
Monitoring elements |
Displacement, angle, acceleration, vibration, temperature |
|
|
Single section length |
50cm/100cm支持 custom made |
|
|
Maximum length |
50cm/section |
200m |
|
100cm/section |
400 meters |
|
|
Angle |
Range |
±90° |
|
Resolution |
0.001° |
|
|
Precision |
0.005° High precision |
|
|
0.05° Ordinary accuracy |
||
|
Displacement |
Resolution |
0.01mm |
|
Stability |
High precision better than ±1mm@50m |
|
|
Ordinary accuracy is better than ±3mm@50m |
||
|
Warm water effluent |
High precision |
Better than 1mm@50m |
|
Temperature range: -20~55℃ |
||
|
Normal precision |
Better than 2.5mm950m |
|
|
Temperature range: -20~55℃ |
||
|
Vibration (for vibration monitoring above 10mg amplitude) |
Vibration frequency |
Resolution: 1Hz |
|
Range: 1~128Hz |
||
|
Amplitude |
Resolution 1mg, accuracy 3mg |
|
|
Temperature |
Resolution |
0.1℃ |
|
Precision |
0.5 degrees Celsius |
|
|
Working voltage |
DC 5~30V, recommended DC 12V |
|
|
Working current |
≤1.8mA@12V/cell (average) |
|
|
<5mA@12V/cell (peak) |
||
|
Hardware interface |
RS485 interface (default) or RS232 interface |
|
|
Communication protocol |
See the Array Displacement Meter Development Guide. |
|
