IoT Router With Ethernet/Serial Port/WIFI HC341
Category:
keyword:
Product Overview
HC341 is a feature-rich and cost-effective IoT router designed for industrial applications, such as vending machines, ATM, Kiosk, WIFI advertisement, digital signage, smart traffic light, EV charging point.
HC341 has 5-RJ45, 1-RS232, 1-RS485, which is perfect for connecting the ethernet or serial port devices to cloud. And the captive portal feature is ideal for WIFI advertisement, optional of GNSS is great for tracking remote assets. In addition, the dual SIM and auto switchover between WAN and WWAN, multiple VPN features provide robust and secure connectivity for data transmission.
HC341 is an OpenWrt based Linux OS industrial IoT router, which provides C/C++, Python programmable embedded environment for IoT developers and programmers to implement their industrial applications in a flexible and fast way.
This product boasts the following features:
• Global 4G LTE/3G/2G or LTE CAT M1/NB-IoT version to choose
• Dual SIM(Option) for failover, auto switchover between wireless and wired WAN
• 4-LAN, 1-WAN, 1-RS232, 1-RS485, WIFI(802.11b/g/n), GNSS/GPS(Option)
• OpenWrt based Linux OS, provides programmable environment for C/C++, Python, LUA developers
• Captive portal for WIFI advertisement, and Radius WIFI for secure authentication
• Multiple VPN protocols, IPsec, L2TP, PPTP, GRE and OpenVPN, to ensure secure data transmission
• LTE/3G/PPPoE DHCP and static address connection
• DHCP server, DHCP binding MAC address, DDNS, firewall, NAT, DMZ host, QoS, traffic analysis
• MQTT, Modbus RTU/TCP, TCP/UDP, HTTP, BGP, SNMP protocols
• SPI Firewall, Port Mapping, DMZ Mapping, ACL, IP-MAC binding and Clone function
• Web UI, telnet & SSH CLI, AT Command configuration
• Web upgrade, local and remote syslog, serial port output log
• SMS commands and DMP(Device Management Platform)for remote configuration and management

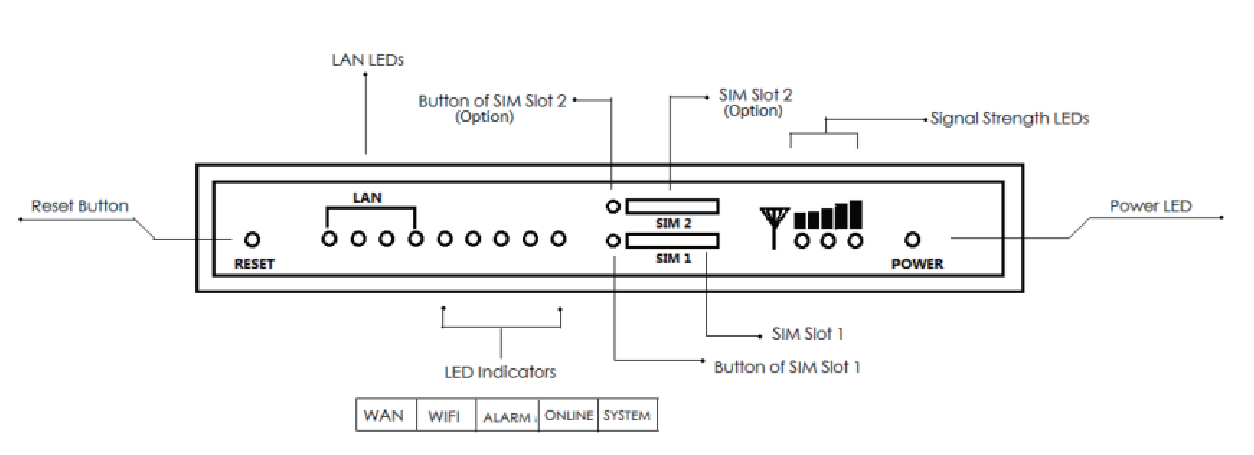

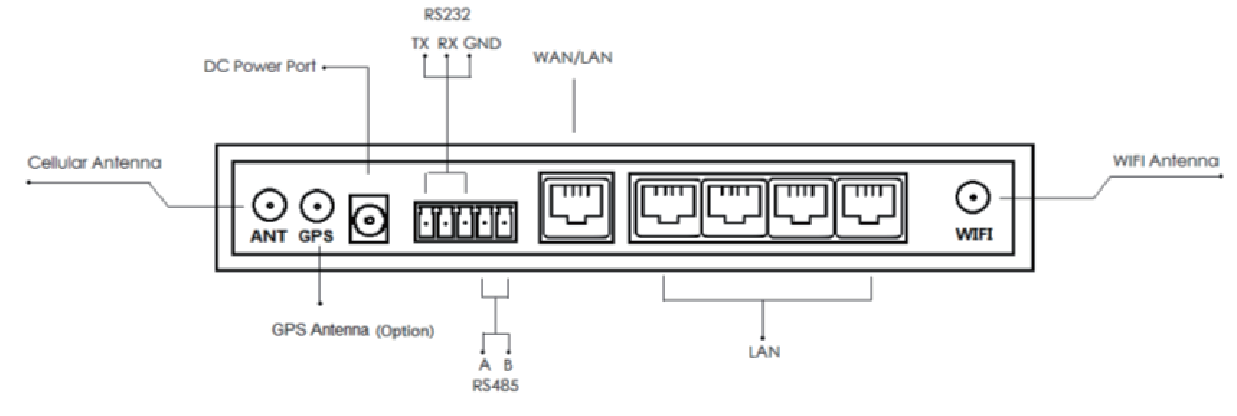

Appearance Description
Product dimensions

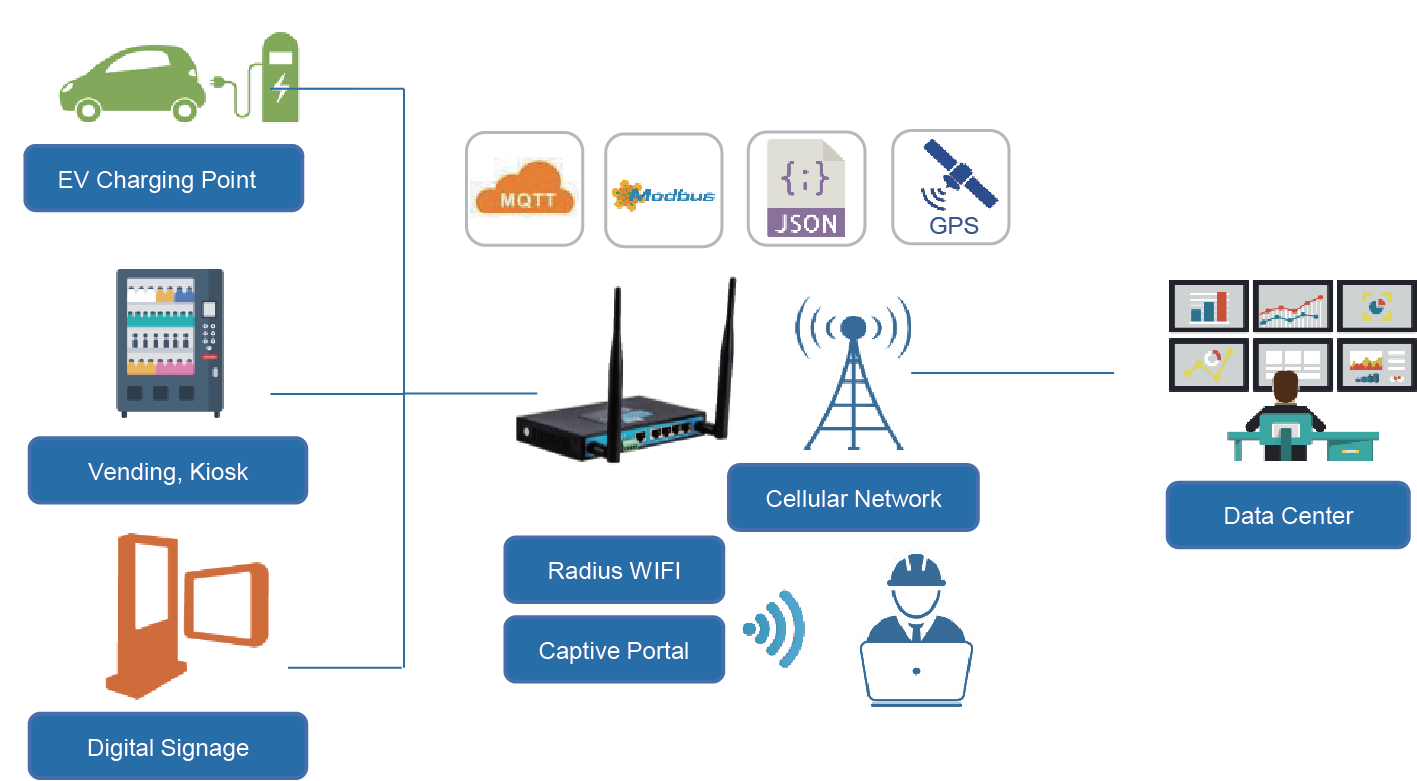

Applications

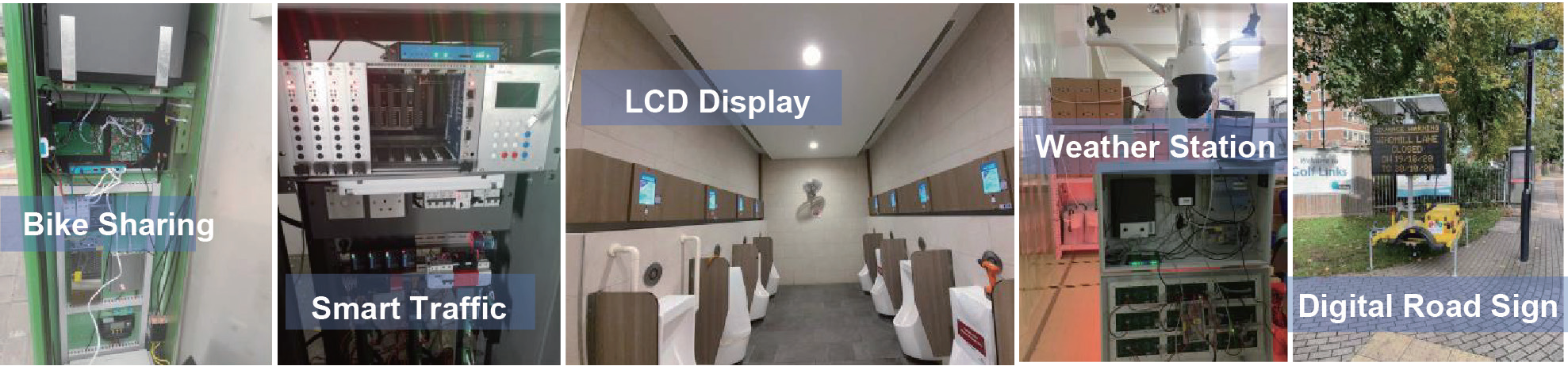

Success Cases
Cellular Interfaces
|
Parameter item |
Details |
|
Antenna Connector |
1x 50 Ω SMA Female |
|
SIM Slot |
1,or 2(DSSM, Option) |
|
ESD Protection |
15KV |
Ethernet Interface
|
Parameter item |
Details |
|
Ports |
5-RJ45 (1-WAN, 4-LAN or 5-LAN configurable) |
|
Data Rates |
10/100 Mbps (Auto-Sensing), Auto MDI/MDIX |
|
ESD Protection |
1.5KV |
Serial Interfaces
|
Parameter item |
Details |
|
Connector |
Terminal block, 3.5 mm female socket with lock |
|
Ports |
1-RS232,1-RS485 |
|
Baud Rate |
300bps to 230400bps |
|
ESD protection |
8KV for RS232, 15KV for RS485 |
Power Supply and Consumption
|
Parameter item |
Details |
|
Connector |
Plug-In |
|
Standard Power |
DC 12V/1.5A |
|
Input Voltage |
5-35 VDC |
|
Power Consumption |
280~330mA@12VDC |
|
Idle Consumption |
190~240mA@12VDC |
Wi-Fi
|
Parameter item |
Details |
|
Antenna Connector |
1x 50 Ω RP-SMA Female |
|
Standard |
IEEE 802.11b/g/n, AP and Client modes |
|
Transmission Rate |
IEEE802.11b/g: Up to 54Mbps IEEE802.11n:Up to 300Mbps |
|
Security |
Open, WPA, WPA2, WPA/WPA2 Enterprise, Radius |
|
Tx Power |
18dBm(11g),21dBm(11b) |
|
Rx Sensitivity |
<-72dBm@54Mpbs |
GNSS/GPS (Optional)
|
Parameter item |
Details |
|
Module |
Built-in independent GPS Module, or GNSS from cellular module |
|
Antenna Connector |
1x50 Ω SMA Female |
Environmental
|
Parameter item |
Details |
|
Operating Temperature |
-35℃to+75℃ (-31°℉ to+167°F) |
|
Storage Temperature |
-40℃to+80℃(-40°Fto+176°F) |
|
Relative Humidity |
5% to 95% (non-condensing) |
|
Ethernet Isolation |
1.5kV RMS |
Others
|
Parameter item |
Details |
|
Reset Button |
1 |
|
LED Indicators |
Power,WAN,LAN,WIFI,System,Alarm,Online, Signal Strength |
|
Built-in |
Watchdog, RTC, Timer |
|
Approvals |
CE, RCM*,FCC*,NBTC |
|
Warranty Period |
Standard: 12 Months;Extended: 2-5 Years |
Physical Characteristics
|
Parameter item |
Details |
|
Ingress Protection |
IP30 |
|
Housing & Weight |
Metal |
|
Dimensions |
530 g(1.17lbs), without accessories 168x104x27mm(6.61x4.09x1.06 in) |
|
Mounting |
Desktop, Wall mount |
Software
|
Parameter item |
Details |
|
Network Protocols |
PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP,RIPV1/v2, OSPF, BGP, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, SSH |
|
Serial Port |
MQTT, Transparent (TCP Client/Server, UDPClient/Server), Modbus Gateway (Modbus RTU to Modbus TCP) |
|
VPN Tunnel |
IPsec/PPTP/L2TP/GRE/OpenVPN |
|
Firewall |
ACL/DMZ/Port Mapping/MAC Binding |
|
Management |
Web, CLI, SMS, Cloud DMP (DeviceManagement Platform) |
|
Reliability |
WWAN and WAN Failover, Dual SIM Backup and Load Balance, Hardware & Software Watchdog |
|
Secondary Development |
OpenWrt based Linux OS,support C/C++ Python,LUA and SDK |
Standard Package Content
|
HC341 Router |
1 PCS |
|
Power Adapter(DC 12V/1.5A, EU/US/UK/AU plug optional) |
1 PCS |
|
RP-SMA WIFI Antenna (19.5cm, 5dBi) |
1 PCS |
|
Mag-mount Cellular Antenna (SMA Male, 1 meter, 5dBi) |
1 PCS |
|
RS232 Cable (DB9 Female, 1 meter) |
1 PCS |
|
Ethernet Cable(1 meter) |
1 PCS |
|
5-Pin Terminal Block |
1 PCS |
|
Wall mount kits |
1 PCS |
IOT ROUTER WITH ETHERNETSERIAL PORTWIFI PRODUCT SPECIFICATION
