GNSS Displacement Deformation Monitoring Terminal
Category:
keyword:
Water Level Sensor section
1. Equipment introduction:
A dedicated multi satellite frequency GNSS monitoring all-in-one machine for surface displacement monitoring, with high accuracy, low power consumption, high cost-effectiveness, and portable installation. It has a low power consumption of 2W and is equipped with a small solar energy system, which can meet long-term monitoring needs.
2. Application direction:
Displacement monitoring, mainly applied in dam safety supervision, geological disasters, landslides, slope displacement, etc

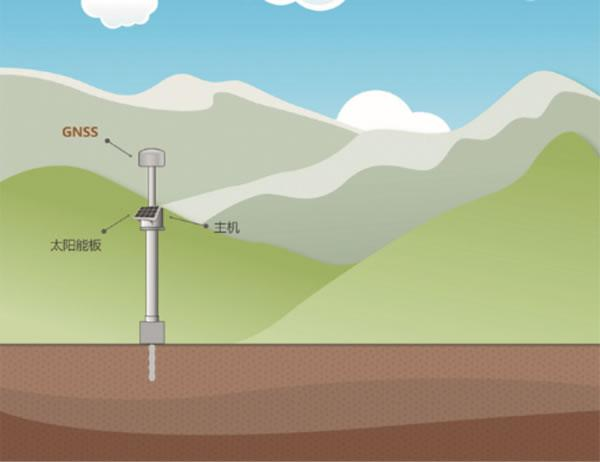

3. Equipment Installation Diagram
4. Advantages and features of equipment:
♦ Monitoring parameters: capable of outputting high-precision surface displacement, acceleration, and inclination observation values;
♦ Monitoring accuracy: horizontal displacement: 2.5mm+0.5ppm, elevation displacement: 5mm+0.5ppm;
♦ Communication methods: Supports 4G, NB-IOT/WIFI, Bluetooth;
♦ Edge computing: support RTK, background and local front-end static calculation, and can directly trigger the audible and visual alarm;
♦ Sensor integration: supports triggering RTK function through MEMS, and can supply power to 485 protocol sensors for the network;
♦ Storage space: Built in storage can store raw data for more than 2 years with a sampling frequency of 15 seconds;
♦ Power characteristics: 2W low power consumption, self starting when powered on, built-in battery can work for 35 hours in emergency mode when connected to mains power;
♦ Minimalist design: Integrated design, simple matching, convenient installation, IP68 protection.

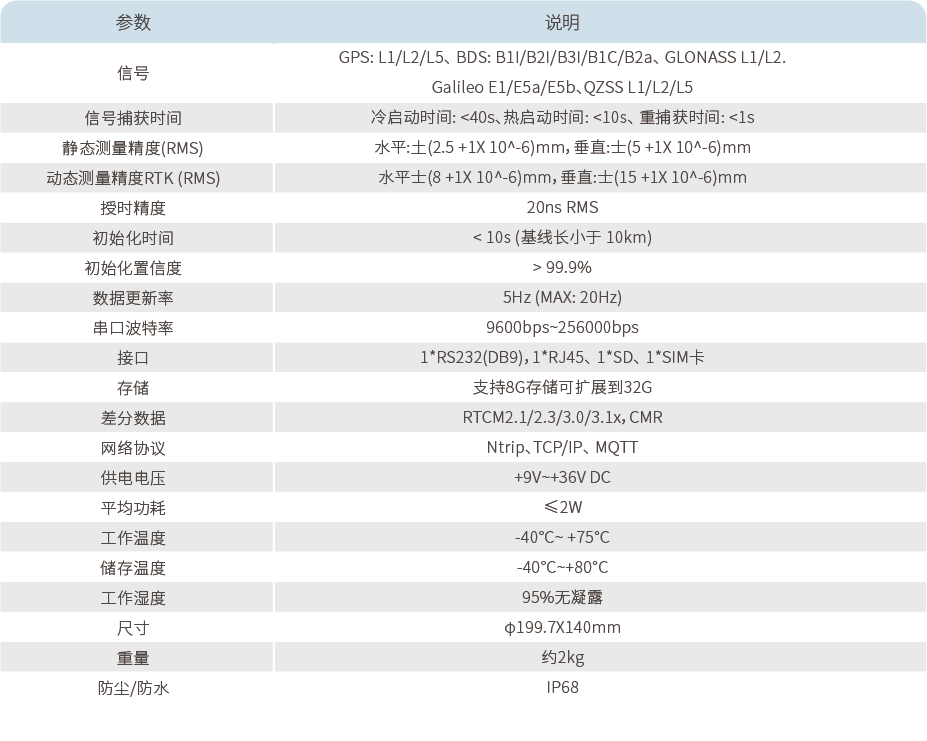

Technical parameters
GNSS Displacement Deformation Monitoring Terminal PRODUCT SPECIFICATION
