Acoustic Doppler Profile Flow Meter (H-ADCP) Flow Measurement System
1、 Application scenarios
H-ADCP collects high-quality horizontal profile data, and with the help of intelligent acoustic pulse function, even if the water flow changes, high-resolution and high-quality data can still be obtained.
Especially suitable for:
(1) Concrete channel
(2) Natural rivers
(3) Creek
(4) Irrigation channels
(5) Hydroelectric waterway
(6) Water supply channel
(7) Flow monitoring of drainage channels
2、 Requirement analysis
In the hydrological information measurement of rivers and channels, the measurement of flow velocity, flow rate and direction is very important. The traditional flow measurement methods mainly include current meter method, buoy method, etc. The measurement methods include manual boat measurement, cableway measurement, etc. These measurement methods are simple in principle and practical, but time-consuming and inefficient. In order to meet the needs of economic and social development in the new era and the informationization construction of water conservancy and irrigation areas, and to provide accurate water information to relevant departments in a timely manner, it is necessary to quickly collect water volume data of rivers and irrigation. The acoustic Doppler profile flowmeter has incomparable advantages in flow measurement.
3、 System composition
3.1 System Topology Diagram

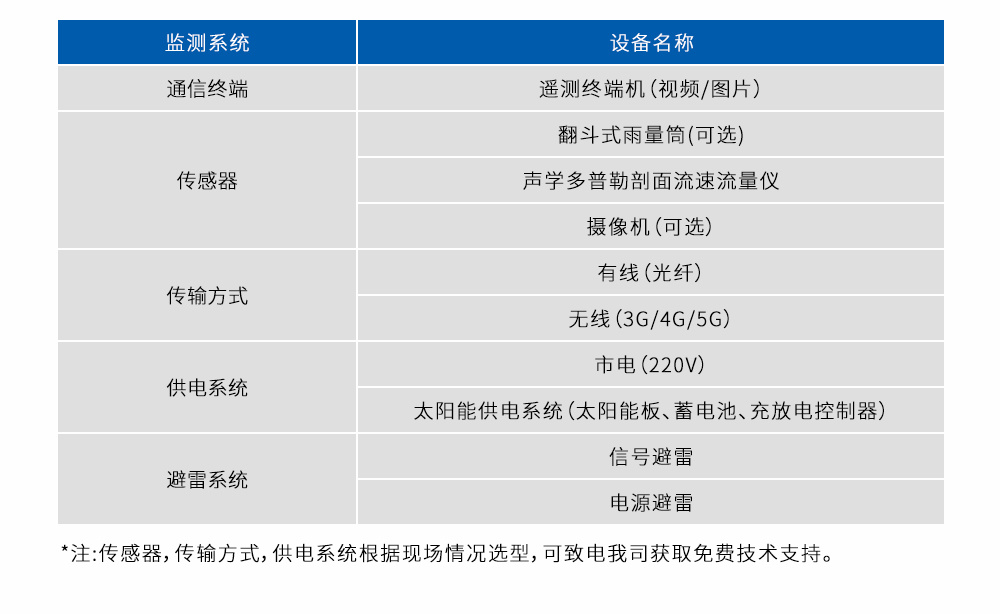

3.2 Hardware System
4、 System features
♦ The new generation of flow rate products has more stable performance and more accurate flow measurement;
♦ Layered flow velocity measurement is more suitable for the flow velocity distribution in wide watersheds;
♦ Layered flow velocity and direction measurement to grasp the flow trend of water bodies;
♦ Web cloud data services;
♦ Built in depth measurement probe;
♦ The flowmeter is simple and easy to use;
♦ Built in temperature sensor, automatic calibration of sound speed;
♦ Built in attitude sensor and water level sensor for measurement;
♦ Small and streamlined design for easy installation;

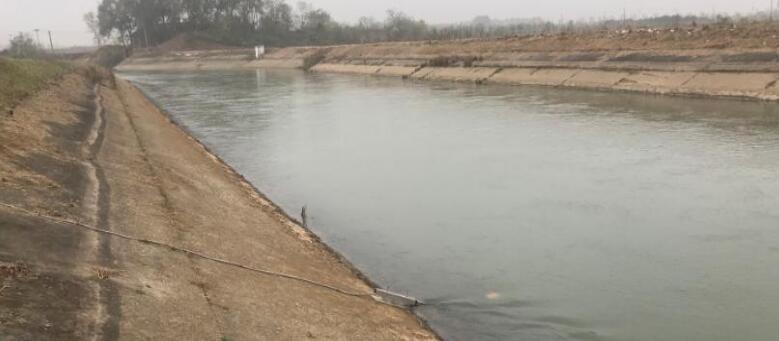

5、 Application effect
